Drought Resistance water pump set for farm irrigation

FOB Price

USD $1,200 - $15,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	U-power
Model Number	42GPK01	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Other, Farm irrigation
Power	Electric	Standard or Nonstandard	Standard
Fuel	Diesel	Pressure	Low Pressure
Application	Other, farming, farm irrigation

Product Description

4 cylinder water pump set for farm irrigation

Usage: Farm irrigation,fire fighting,industrial water supply system

Treated Water: Fresh water,River water

Outflow: 40-2000m³/h

Brand:U-POWER

6Inch Diesel clean water pump set treating fresh water,Farm irrigation use

Outflow:366cbm/h

Head/lift:26.7m

Selected Water Supply Solutions: Example 1

Model of Diesel pump set	42GPK01(Q=366m³/h H=26.7m)
Usage	FARM IRRIGATION
Treated Water	FRESH WATER/RIVER WATER
Model Diesel Engine	ZH4100ZD (OEM Ricardo Diesel Engine)
Rated Output/Max output(KW)	42KW(58HP)/46KW/63HP
Rated Speed (r/min)	1500
Starting Method	12V DC Electric motor
Cooling Method	closed water cooling
Governing Method	Mechanic governing
Intake Method	natural aspiration
Cylinders	4
Bore/Stroke	100/115mm
Type	closed water cooling,in-line,4 stroke,humid liner,direct injection

Model Diesel Water Pump	IS200-150-315A
Type	single grade,single suction,centrifugal pump
Outflow/head lift	366m³/h{63492gallons/hr(US gallon),52805gallons/hr(UK gallon)},head lift:26.7m
Suction lift	26.7m
Shaft Power	35KW
Inlet diameter	200mm(8inch)
Outlet diameter	150mm(6inch)
Casing material	cast iron
Shaft material	cast iron
Impeller material	cast iron
Sealing method	stuffing sealing

Display/Control System	Display oil pressure,charging current,water temperature,oil temperature.

Standar Equipments	Diesel engine: 1set
	Water pump: 1set
	Trailer:1set(Similar structure as following)
	5" Outlet flexible hose:1000m(20m/coil)===>best quality
	5" Connection joint:50sets(Aluminium alloy)===>best quality
	Bottom valve with flange and seal gasket:1set,bolt&screw:8 sets
	Inlet flange(6") with seal gasket:1set,bolt&screw:8 sets
	Outlet flange(5") with seal gasket:1set,bolt&screw:8 sets
	Outlet ball valve with short steel pipe for priming water:1set
	Oil filter:1set
	Fuel filter:1set
	Air filter:1set
	Display meters: 4set
	Flexible shaft joint: 1pc
	Common base with fuel tank(8hr working):1set
	Battery:DC 12V*1
	Accessary spare parts
	Technic file: 1set
Product N.W.(KG)
Packing	plywood case
Packing
Unit Price	FOB QINGDAO,
Payment Terms	T/T30% deposit,after collection,arrange production.The 70% should be paid before the shipment.When got full payment,we release the full set of Original DOCS.
Delivery Time	10 working days after received 30%deposit
MOQ	1SET
Warranty	1year/1500hrs

WHY CHOOSE US?

1)Ten years experience,make us more professional than other suppliers.

2)Quick delivery: 7-15 working days delivery time

3)Perfect after sale service: provide international warranty service.

4)Pay attention to quality: 3 hours test before out factory

5) Environmental protection and energy saving : low noise, low emission,low fuel consumption.

6)Once establish business relationship in the long way, can share our VIP price.

Above table is just a reference of our product, in fact we can manufacture diffetent kinds of diesel water pump with different power and performance, we are sincerely looking for partners to develop oversea market together, any questions free to let

us know,your kindly feedbacks and suggestion will be highly appreciated.

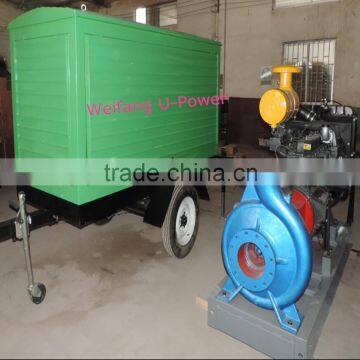

Reference picture
