Agricultural application diesel engine driven water pump for irrigation
USD $2,300 - $3,500
/ Set
1 Set(Min.Order)
- 6000 Set / Sets per Month
- Qingdao China
- T/T
You May Like
-
Drought Resistance water pump set for farm irrigation
-
Drought Resistance diesel pump set for farm irrigation
-
4 cylinder diesel water pump for farm irrigation
-
GOOD QUANLITY! Supply 4 inch Agricultural irrigation diesel water pump FOR SALES.
-
Diesel driven pumps , centrifugal pump of flow 10-10000 cubic metres
-
TOP QUALITY! high reliability diesel engine trailer mounted water pump IN FAVORABLE PRICE
Product Details
| Place of Origin | Shandong, China | Brand Name | U-power | |
| Model Number | 42GPK01 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, Farm irrigation | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, farming, farm irrigation |
Product Description
diesel engine water pump
Usage: Farm irrigation,fire fighting,industrial water supply system
Treated Water: Fresh water,River water
Outflow: 40-2000m³/h
Brand:U-POWER
6Inch Diesel clean water pump set treating fresh water,Farm irrigation use
Outflow:366cbm/h
Head/lift:26.7m
Selected Water Supply Solutions: Example 1
| Model of Diesel pump set | 42GPK01(Q=366m³/h H=26.7m) |
| Usage | FARM IRRIGATION |
| Treated Water | FRESH WATER/RIVER WATER |
| Model Diesel Engine | ZH4100ZD (OEM Ricardo Diesel Engine) |
| Rated Output/Max output(KW) | 42KW(58HP)/46KW/63HP |
| Rated Speed (r/min) | 1500 |
| Starting Method | 12V DC Electric motor |
| Cooling Method | closed water cooling |
| Governing Method | Mechanic governing |
| Intake Method | natural aspiration |
| Cylinders | 4 |
| Bore/Stroke | 100/115mm |
| Type | closed water cooling,in-line,4 stroke,humid liner,direct injection |
| Model Diesel Water Pump | IS200-150-315A |
| Type | single grade,single suction,centrifugal pump |
| Outflow/head lift | 366m³/h{63492gallons/hr(US gallon),52805gallons/hr(UK gallon)},head lift:26.7m |
| Suction lift | 26.7m |
| Shaft Power | 35KW |
| Inlet diameter | 200mm(8inch) |
| Outlet diameter | 150mm(6inch) |
| Casing material | cast iron |
| Shaft material | cast iron |
| Impeller material | cast iron |
| Sealing method | stuffing sealing |
| Display/Control System | Display oil pressure,charging current,water temperature,oil temperature. |
| Standar Equipments | Diesel engine: 1set |
| Water pump: 1set | |
| Trailer:1set(Similar structure as following) | |
| 5" Outlet flexible hose:1000m(20m/coil)===>best quality | |
| 5" Connection joint:50sets(Aluminium alloy)===>best quality | |
| Bottom valve with flange and seal gasket:1set,bolt&screw:8 sets | |
| Inlet flange(6") with seal gasket:1set,bolt&screw:8 sets | |
| Outlet flange(5") with seal gasket:1set,bolt&screw:8 sets | |
| Outlet ball valve with short steel pipe for priming water:1set | |
| Oil filter:1set | |
| Fuel filter:1set | |
| Air filter:1set | |
| Display meters: 4set | |
| Flexible shaft joint: 1pc | |
| Common base with fuel tank(8hr working):1set | |
| Battery:DC 12V*1 | |
| Accessary spare parts | |
| Technic file: 1set | |
| Product N.W.(KG) | |
| Packing | plywood case |
| Unit Price | FOB QINGDAO, |
| Payment Terms | T/T30% deposit,after collection,arrange production.The 70% should be paid before the shipment.When got full payment,we release the full set of Original DOCS. |
| Delivery Time | 10 working days after received 30%deposit |
| MOQ | 1SET |
| Warranty | 1year/1500hrs |
WHY CHOOSE US?
1)Ten years experience,make us more professional than other suppliers.
2)Quick delivery: 7-15 working days delivery time
3)Perfect after sale service: provide international warranty service.
4)Pay attention to quality: 3 hours test before out factory
5) Environmental protection and energy saving : low noise, low emission,low fuel consumption.
6)Once establish business relationship in the long way, can share our VIP price.
Above table is just a reference of our product, in fact we can manufacture diffetent kinds of diesel water pump with different power and performance, we are sincerely looking for partners to develop oversea market together, any questions free to let
us know,your kindly feedbacks and suggestion will be highly appreciated.

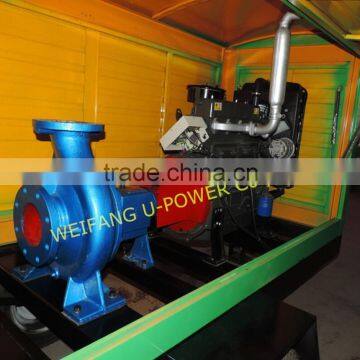

Reference picture
