SRL-W horizontal mixer unit/Plastic mixing machine
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | High | |
| Automatic Grade | Automatic | Place of Origin | Jiangsu, China | |
| Brand Name | friend machinery | Model Number | SRL series horizontal mixer unit, SRL | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications

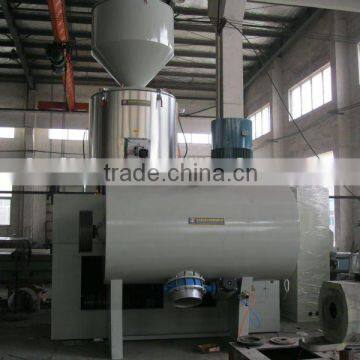

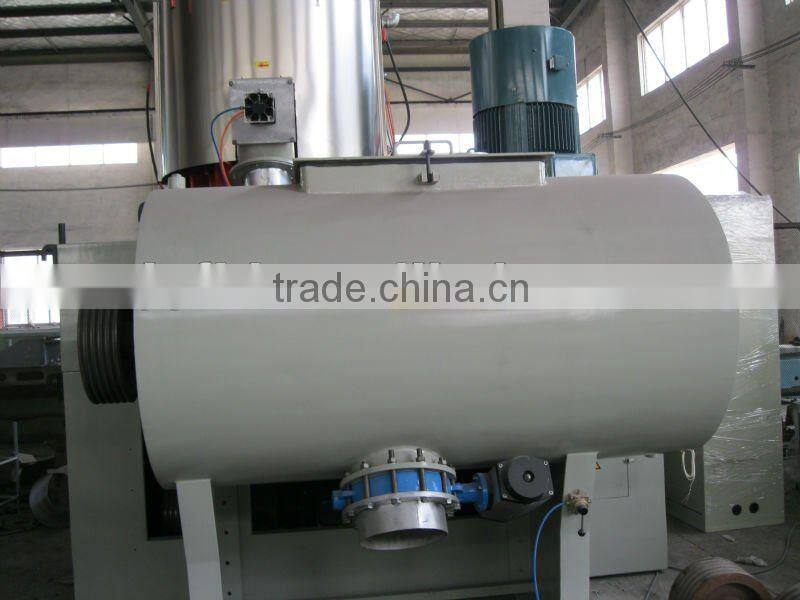

SRL cooling Mixer1.mixing fast and even2.easily cleaning,compact structure3.steady performance
Applications and characteristic:
1.It is used in mixing, compounding, drying, coloring and other processing of pvc, pp, pe, etc. it is ideal equipment for producing shaped plastic material and plastic pipes.
2.The unit combines heat mixing and cooling mix together.
3.The materials after heat mixing will go into the cool mixing for exhausting the remained gas and preventing blocking.
4.advanced control system ensures the smooth running.
The blades are made of stainless steel,they have passed the test of dynamic balance and static equilibriumIt can equipped with the pulse dusting device.
The main parameters:
Model/specification | SRL-W500/1600 | SRL-W800/2000 | SRL-W800/2500 | 800*2/4000 | 1000/2500 |
Total volume | 500/1600 | 800/2000 | 800/2500 | 1600/4000 | 1000/2500 |
Effective volume | 330/1000 | 560/1400 | 600/1500 | 1120/2700 | 700/1750 |
Mixing blade speed | 430/860/70 | 330/660/55 | 330/660/55 | 350/700/65 | 350/700/50 |
Heating and cooling way | Self friction/water-cooling | ||||
Mixing time | 8-12 | ||||
Motor power | 47/67/15 | 60/90/18.5 | 83/110/22 | 83/110*2/45 | 83/110/22 |
Unloading | Pneumatic | ||||
