Home > Products > Mixing Machine > Heating & Cooling Plastic Mixer Unit
Heating & Cooling Plastic Mixer Unit
- 20 Set / Sets per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | friend | |
| Model Number | srl-z, SRL-Z Series | Certification | CE ISO | |
| Warranty | 12 months, one year | After-sales Service Provided | Engineers available to service machinery overseas | |
| Application | powder |
Product Description
Specifications
Plastic mixer unit1.mixing fast and even
2.easily cleaning,compact structure
3.steady performance
4.one year warranty

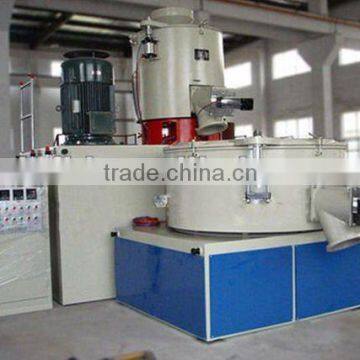

Heating and Cooling Mixing Machine
Application & Apply Range
It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe.
It is heating mixing has self-friction electric heating
Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming
It has features of contact construction, good performance
They have passed the test of dynamic balance and static equilibrium
Vertical type of parameter | |||||
Parameter/model | SRL-Z50/100A | SRL-Z100/200A | SRL-Z200/500A | SRL-Z300/600A | SRL-Z500/1000A |
Total volume(L) | 50/100 | 110/200 | 200/500 | 300/600 | 500/1000 |
Effective volume(L) | 37/70 | 75/130 | 150/320 | 225/384 | 375/640 |
Oar speed(rpm) | 510/1013/118 | 650/1300/130 | 484/967/110 | 480/964/100 | 413/830/71 |
Motor power(Kw) | 7/11/7.5 | 14/22/11 | 30/42/11 | 40/55/11 | 47/67/15 |
Heating & cooling | Self-friction/water | ||||
Discharge | pneumatic | ||||
weight(T) | 2.8 | 3 | 3.5 | 3.8 | 5.8 |
Horizontal type of cooling mixer parameter | ||||||||
Parameter /model | SRL-Z200 /500W | SRL-Z300 /600W | SRL-Z500 /1000W | SRL-Z500 /1600W | SRL-Z800 /2000W | SRL-Z800 /2500W | SRL-Z1000 /3500W | SRL-Z800×2 /4000W |
Total volume(L) | 200/500 | 300/600 | 500/1000 | 500/1600 | 800/2000 | 800/2500 | 1000/3500 | 1600/4000 |
Effective volume(L) | 150/320 | 225/384 | 375/660 | 375/1024 | 560/1280 | 560/1600 | 750/2240 | 1120/2550 |
Capacity (kg/h) | 370-400 | 550-600 | 800-1000 | 800-1000 | 1300-1500 | 1300-1500 | 1800-2000 | 2600-3000 |
Oar speed(rpm) | 490/980/70 | 480/964/70 | 441/886/60 | 441/886/51 | 330/660/51 | 330/660/51 | 330/660/51 | 330/660/51 |
Motor (Kw) | 30/42/7.5 | 40/55/11 | 47/67/1.5 | 47/67/18.5 | 83/110/18.5 | 83/110/22 | 110/150/30 | 83/110×2/37 |
Heating &cooling | Self-friction/water | |||||||
discharge | pneumatic | |||||||
weight(T) | 3.5 | 3.8 | 7.8 | 8.5 | 10.5 | 11 | 12 | 18 |
1.vertical plastic mixer
2.Horizontal mixer
Our company is well known both home and abroad for high quality products and complete service systems.our products sell well all over the world .
If you are interested in any of our products ,please fell free to contact us for more information.
Contact Us
- Zhangjiagang Friend Machinery Co., Ltd.
- Contact nameWei Yuan Chat Now
- Phone86-512-58551998, 18901568633
- AddressNo.3 Jinle Road, Jinfeng Town, Zhangjiagang City,Jiangsu Province, China, Suzhou, Jiangsu
