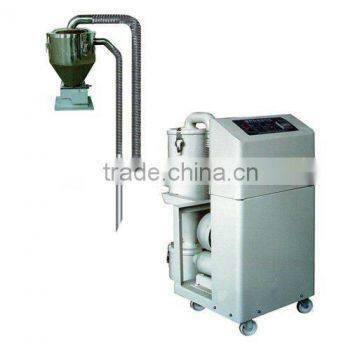

ZJ Series Plastic Automatic Feeding Machine
- shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Friend Machinery | |
| Model Number | ZJ | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
ZJ series plastic automatic feeding machine1.Relabile performance.
2.Competitive price
3.Warranty one year
Specifications
high efficiency ,low noise,reliable performance ,civilization and safety.save your labour and realize the safety and reliablity.
The unit is used to realize the airflow converying of granulated resin by means of low vacuum,it can be used with a hopper dryer to automatize dry material-supplying.
main technical parameter
| model | ZJ200 | ZJ400 | ZJ600 | ZJ1000 |
| The maximum static pressure | 9800 | 13000 | 14000 | 16000 |
| The maximum amount of wind | 2 | 2.8 | 3.4 | 4.5 |
| power of the motor | 1.1 | 1.5 | 2.2 | 5.5 |
| Transmission capacity | 200 | 400 | 600 | 1000 |
| rotating speed | 300 | 360 | 450 | 700 |
| Suction gate volume | 10/10 | 15/10 | 20 /15 | 25 |
| Conveying hose inside diameter | 40 | 40 | 50 | 50 |
| Suction pipe inner diameter | 50/40 | 50 /40 | 60/50 | 60 |
| dimensions | 520*400*905 | 520*400*905 | 620*400*970 | 800*530*1009 |
| 370*480*820 | 370*480*820 | 420*560*870* | 614*312*820 | |
| 75 | 90 | 100 | 130 |
ZJF series plastic power charger ,this machine can be used wih all kinds of extruders,it can automatically carry plastics powder into the hopper of molding machine by means of a controller of material level,it can save your labour ,and realize the safety and reliablity.
main technical parameter
| model | ZJF100 | ZJF300 | ZJF700 |
| Rated transmission capacity<kg/h> | 100 | 300 | 150 |
| Hopper capacity<kg> | 100 | 120 | 150 |
| Spring diameter<mm> | F30 | F36 | F59 |
| the maximum amount of transportation<KG/H> | 200 | 450 | 1000 |
| Feeding tube and the length of the spring<M> | 3 | 3-5 | 3-5 |
| The capacity of the storage box<kg> | 120 | 150 | 200 |
| power<kw> | 1.1 | 1.1 | 2.2 |
| dimensions<mm> | 650*980 | 650*1162 | 820*1550 |
| 850*620*740 | 905*655*840 | 950*95090 | |
| weight<KG> | 120 | 150 | 250 |
