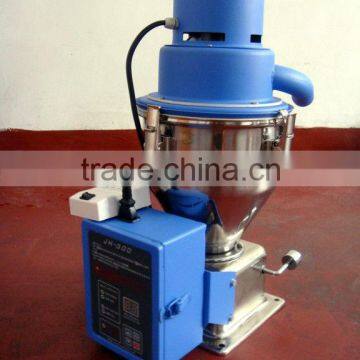

Automatic Plastic Feeding Machine/powder Charging Machine

FOB Price

US$ 250 - 600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Plastic powder feeder
Place of Origin	Jiangsu, China	Brand Name	Friend
Model Number	SQ	Voltage	380V 50HZ or required
Power(W)	1.1-5.5KW	Certification	ISO9001
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Automatic plastic feeder/powder charging machine
1.powerful driving
2.easy and safe operation
3.ISO9001

Automatic plastic feeder/powder charging machine

SQ series plastic automatic powder feeding machine

The unit is used to realize the airflow conveying of granulated resin by means of the technology of

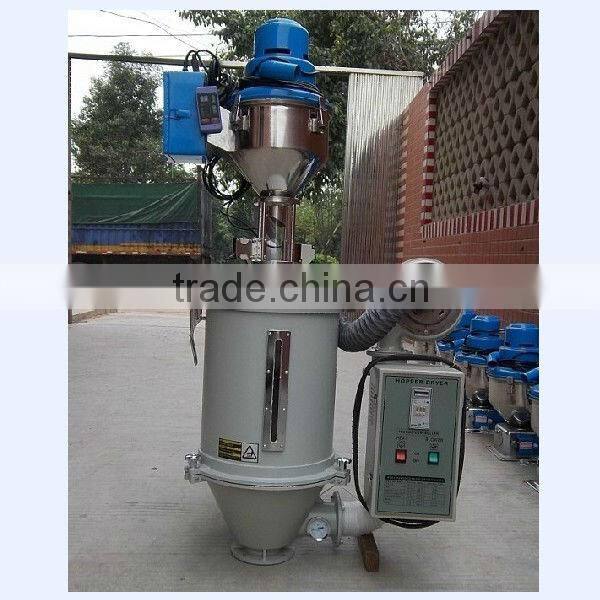

low vacuum , it can be used with a hopper dryer to automatize dry material supplying .

Feature

1.long uselife , lower consumption and noise

2.powerful feeding performance

3.ISO9001

The machine technical parameters

Model			SQ100	SQ200	SQ400	SQ600	SQ1000
Max wind pressure(pa)			9800	9800	13000	14000	16000
Max air volume(m3/min)			2	2	2.8	3.4	4.5
Motor	Power(kw)		1.1	1.1	1.5	2.2	5.5
Motor	Rotating speed(r/min)		2800
Transport(kg/h)	Distance(m)	5	100	200	400	600	1000
		10		150	300	450	700
		15				360	500
Aspirating charging door volume(L)			5	10	15	20	25
Internal diameter of transfer soft pipe(mm)			40	40	40	50	50
Internal diameter of aspirating soft pipe(mm)			40	40	50	50	60
Weight(kg)			60	75	90	100	130

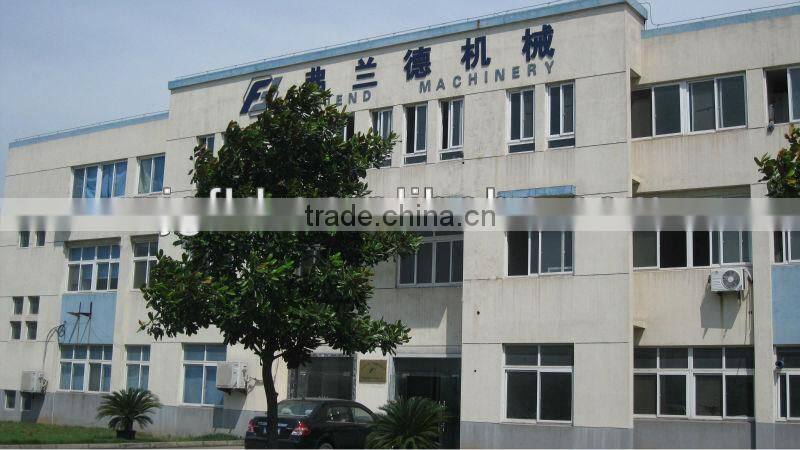

Zhangjiagang Friend Machinery Co., Ltd.: Contact nameWei Yuan
Chat Now; Phone86-512-58551998, 18901568633; AddressNo.3 Jinle Road, Jinfeng Town, Zhangjiagang City,Jiangsu Province, China, Suzhou, Jiangsu
