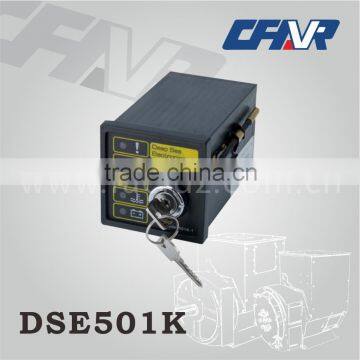

Deep Sea Control DSE501K
- Fuzhou / Xiamen
- T/T Credit Card
You May Like
-
deep sea control module DSE501k
-
High quality stable three phase deep sea controller DSE501K
-
Deep sea remote key star GENERATOR CONTROLLER DSE501K
-
Diesel generator parts electronic controller DSE702as Controller Start Module DSE702K-AS-HC
-
Deep Sea Diesel Engine Throttle Control Panel DSE702-MS
-
intelligent generator controller DSE702 702K
Product Details
| Place of Origin | Fujian, China | Brand Name | Deep Sea | |
| Model Number | DSE501K | Usage | JIW | |
| Phase | Three Phase | Current Type | DC |
Product Description
Deep Sea Control DSE501K:
DSE501K is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on the front panel. The module is used to start and stop the engine, indicating fault conditions; automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.
1) SPECIFICATION:
A. DC Supply----9~33V continuous.
B. Alternator Input Range----15~305V AC RMS
C. Alternator Input Frequency---- 50~60Hz at rated engine speed.
D. Magnetic Input Range----0.5V~+/-80V
E. Magnetic Input Frequency----2300Hz~6000Hz
F. Start Relay Output----16 Amp DC at supply voltage
G. Run Relay Output----16 Amp DC at supply voltage
H. Alarm Output----1Amp DC at supply voltage
I. Operating Temperature Range----- -30~70celsius
2)TECHNICAL DATA:
| Power Supply | 9 to 33 Vdc Continuous |
| Cranking Dropouts: | Able to survive voltage dips during cranking. Without The need for internal batteries. |
| Alternator Input Range | 15 - 305 V AC RMS |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed |
| Magnetic Input Range | 0.5 V to +/- 80 V |
| Magnetic Input Frequency | 2300Hz to 6000 Hz at rated engine speed |
| Start Relay Output: | 16 Amp DC at supply voltage |
| Run Relay Output: | 16 Amp DC at supply voltage |
| Alarm Output | 1 Amp DC at supply voltage |
| Operating Temperature Range: | -30 to +70°C |
Packaging: Standard Carton Packing
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
