EA230 Automatic Voltage Regulator
- Fuzhou / Xiamen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Chengfeng | |
| Model Number | EA230 | Usage | Other, SVC, Regulating Voltage for Generator | |
| Phase | Three Phase | Current Type | AC |
Product Description

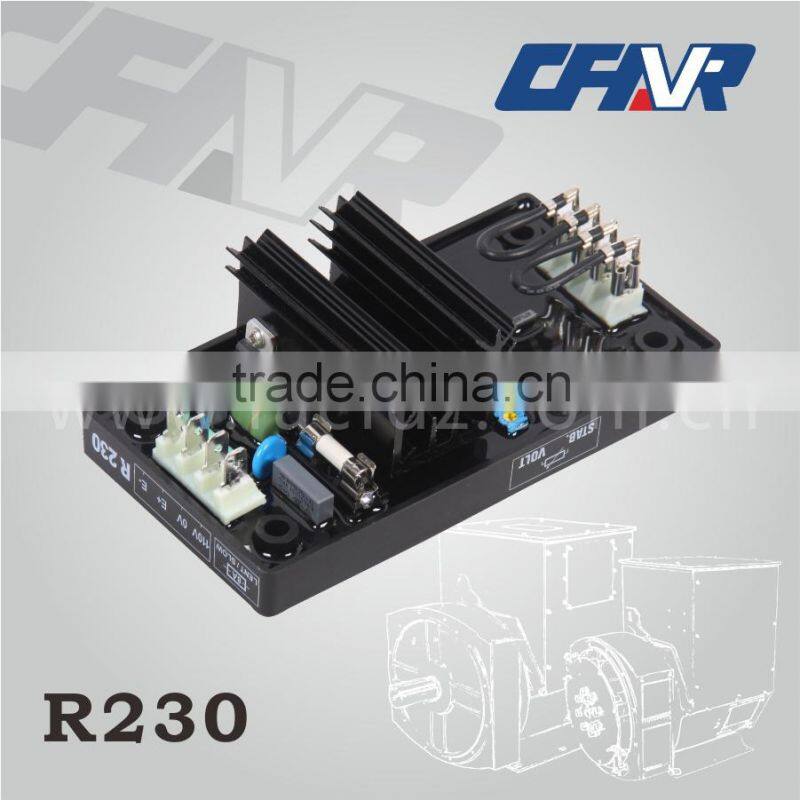

EA230 8Amp is an universal AVR and compatible replacement for Leroy Somer R230 regulator:
* The alternator with shunt excitation is self-excited with an R230 voltage regulator.
* The regulator monitors the exciter excitation current as a function of the alternator output voltage.
* Very simple in design,the alternator with shunt excitation has no sustaining short-circuit capacity.
* Voltage Regulation:around +/-0.5%
* Voltage supply/sensing range 85 ~139 V (50-60Hz)
* Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20%
* Voltage setting P1
* Stability setting P2.
* Initial potentiometer settings :
1) P1 potentiometer (AVR voltage adjustment): fully anti-clockwise.
2) Remote voltage adjustment potentiometer: centre position.
Run the alternator at its rated speed. If the voltage does not
increase, the magnetic circuit should be remagnetized (see
section 2.3).
3) Turn the AVR voltage adjustment potentiometer P1 slowly
until the output voltage rated value is obtained.
4) Adjust the stability setting using P2.
5) Sealed potentiometer P3 is factory set at 48 Hz for 50 Hz
and 58 Hz for 60 Hz
| Sensing Input | Voltage | 85 to 139 V | |
| Frequency | 50/60 Hz | ||
| Output | Voltage | Max 75 V dc at 100V ac input | |
| Current | Continuous 4A dc; Intermittent 8A | ||
| Resistance | 15 ohms minimum | ||
Packaging: Standard Carton Packing
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
