Brushless Generator AVR CF-15A,GAVR-15A

FOB Price

US$ 30 - 100 / Piece

10 Pieces(Min. Order)

Port Fuzhou / Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Chengfeng
Model Number	CF15A	Usage	Other, JIW, Regulating Voltage for Generator
Phase	Single Phase	Current Type	AC

Product Description

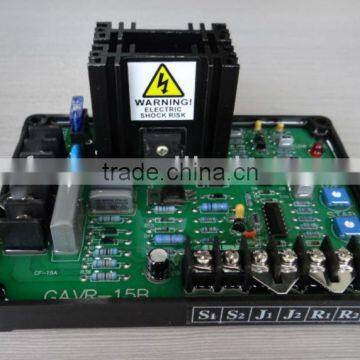

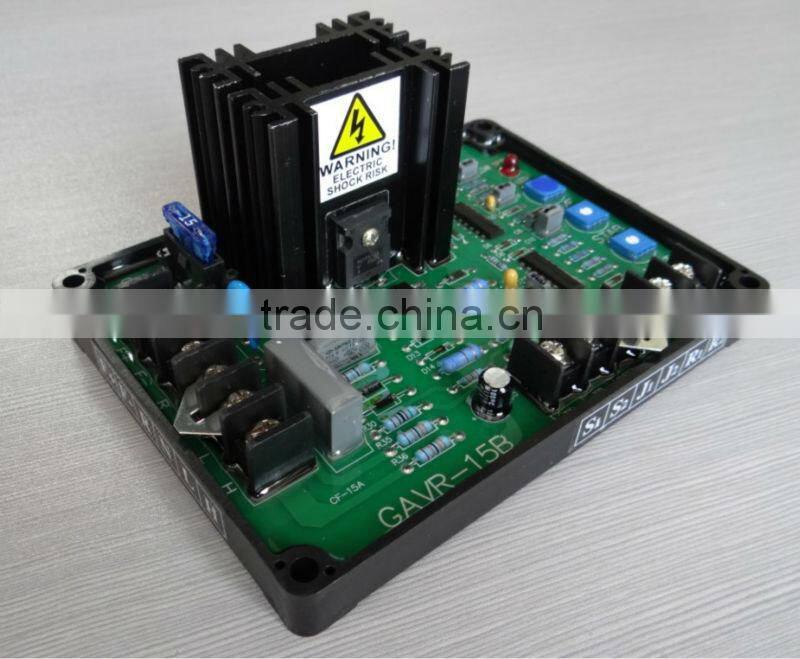

Brushless Generator AVR CF-15A,GAVR-15A :

applicable to Brushless Generator.

CF series AVR is named by our company name “ChengFeng”. So we are the leader of CF AVR.

Good quality & high range spare parts make superior products.

Trust + Professional + Speed

Product Description

Technical parameter:

GAVR-15A is Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.

- <±O.5oA, Regulation

- 220/400 VAC Programmable Input

- Rugged Compact Design

- With Under Frequency Protection

- Soft Start Voltage Ramping

- EMf Suppression

- Built-in Hihg Capacity 15Amp Fuse

*Sensing Input Voltage 220/400VAC,1phase 2wire

*Power Input Voltage 180~240VAC, 1phase 2wire

*Output Voltage Max.90VDC@240VAC input

Current Continuous 6A

Intermittent 12A for 10SEE

Resistance Min.10Ω Max 100Ω

*Voltage Build-up esidualvolts at AVR teminal>5VAC

*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer

*Unit Power Dissipation Max.8Watt

*Under Frequency Protection 60Hz system presets knee point at 57Hz

*(Factory Settings) 50Hz system presets knee point at 47Hz

Sensing Input Voltage	220/400VAC,1phase 2wire
Power Input Voltage	180~240VAC, 1phase 2wire
Output Voltage	Max.90VDC@240VAC input
	Current Continuous 6A
	Intermittent 12A for 10SEE
	Resistance Min.10Ω Max 100Ω
Voltage Build-up	Esidualvolts at AVR teminal>5VAC
External Volts Adjustment	+/-7%with 1KΩ 1watt trimmer
Unit Power Dissipation	Max.8Watt
Under Frequency Protection 60Hz system presets knee point at 57Hz
Factory Settings	50Hz system presets knee point at 47Hz

Packaging & Shipping

Packaging: Standard Carton Packing

Payment Terms:

1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.

2.All major Credit cards are accepted through secure payment processor ESCROW.

Shipment Terms:

1. We Ship to Worldwide, except APO/FPO

2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.

Our Services

1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.

2.Started export since the year of 2008,with quick response to serve the oversea customers

3.Have already passed the strict quality inspection of ISO9001:2000 quality management system

4.Strong R&D Team to design and test products

5.Professional designers and technicians to provide technical assitance

6.Strict quality control process with strict standards

7.Strong installation consulting support

8.Quick after-sale technical advice and guidance
