Good price high quality CF-8A three phase avr

FOB Price

USD $20 - $24 / Piece

10 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Fuzhou / Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Chengfeng
Model Number	CF-8A	Usage	Other, JIW, Regulating Voltage for Generator
Phase	Single Phase	Current Type	AC

Product Description

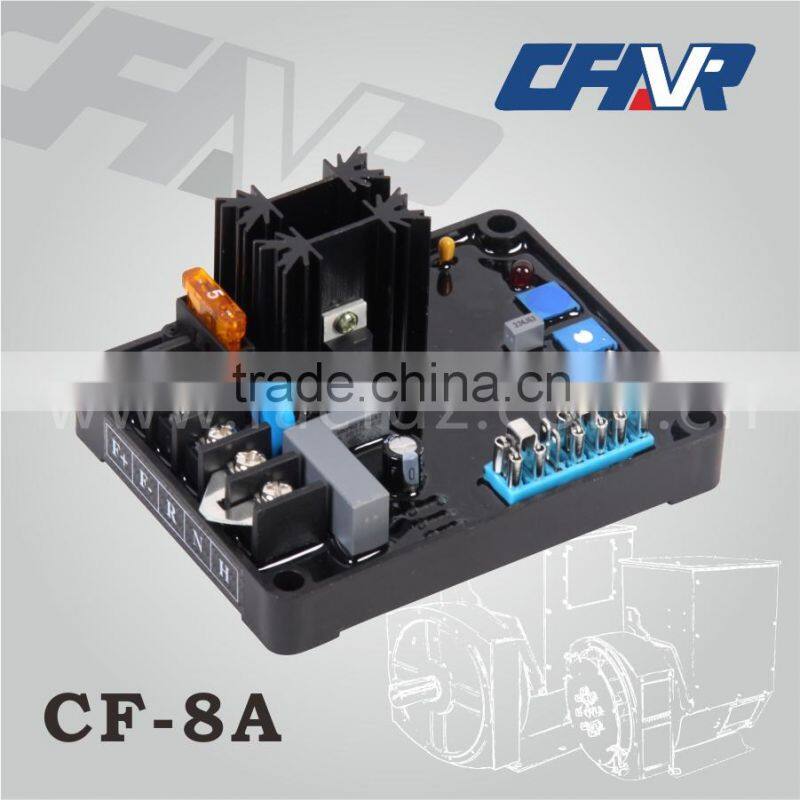

Good price high quality CF-8A three phase avr : applicable to Brushless Generator.

CF series AVR is named by our company name “ChengFeng”. So we are the leader of CF AVR.

Good quality & high range spare parts make superior products.

Trust + Professional + Speed

Product Description

Technical parameter:

1.GAVR 8A Automatic Voltage Regulator

2.Generator automatic voltage regulator

3.High quality, Fast delivery

GAVR 8A

*SensingInput Voltage 220/400VAC,1phase 2wire

*Power Input Voltage 180~240VAC, 1phase 2wire

*Output Voltage input

Current Continuous 6A

Intermittent 6A for 10SEE

Resistance Min.10Ω Max 100Ω

*Voltage Build-up esidualvolts at AVR teminal>5VAC

*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer

*Unit Power Dissipation Max.8Watt

*Under Frequency Protection 60Hz system presets knee point at 57Hz

*(Factory Settings) 50Hz system presets knee point at 47Hz

We can supply the following products:

Automatic voltage regulators for generators

GAVR8A
GAVR12A
GAVR15B
general avr

MARATHON AVR ,SE350
Leroy Somer,R230,R438,R448,R449
Voltage regulator SX440,SX460, AS440

Input	Sensing Voltage	220/400VAC,1phase 2wire
	Power Voltage	180~240VAC, 1phase 2wire
	Voltage Jumper selectable	95-132V ac or 190-264 Hz Nominal
	Frequency	50-60 Hz nominal
Output	Voltage max	90V dc at 207V ac input
	Current continuous	2A dc
	Current intermittent	5A for 10 secs
	Resistance	20 ohms minimum
Voltage Build-up	Esidualvolts at AVR teminal>5VAC
External volts adjustment	+/-7%with 1KΩ 1watt trimmer
Unit Power Dissipation	Max.8Watt
Under Frequency Protection	60Hz system presets knee point at 57Hz
Factory Settings	50Hz system presets knee point at 47Hz
Body size	15.711.56cm
