Home > Products > CF Brushless AVR > HOT SELL CF-15A AVR FOR GENERATOR

HOT SELL CF-15A AVR FOR GENERATOR

FOB Price

US$ 20 - 40 / Piece

10 Pieces(Min. Order)

Port Fuzhou / Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Chengfeng
Model Number	CF15A	Usage	Other, JIW, Regulating Voltage for Generator
Phase	Single Phase	Current Type	AC

Product Description

HOT SELL CF-15A AVR FOR GENERATOR :

Product Description

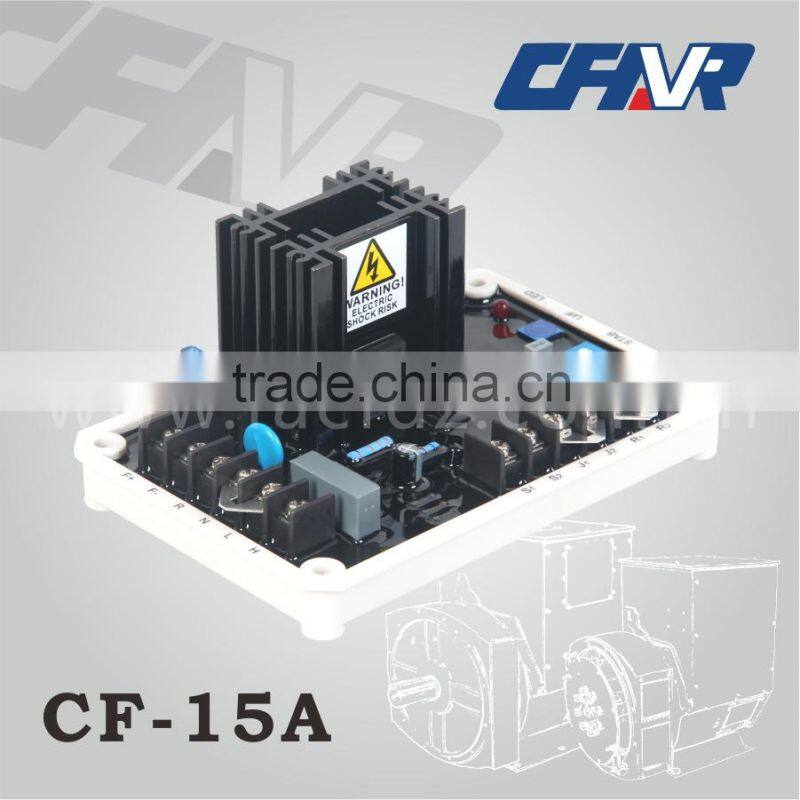

CF-15A AVR: applicable to Brushless Generator.

CF series AVR is named by our company name “ChengFeng”. So we are the leader of CF AVR.

Good quality & high range spare parts make superior products.

Trust + Professional + Speed

Technical parameter:

Sensing input Voltage	220/400VAC , 1 phase 2 wire
Power Input voltage	180-240VAC , 1 phase 2 wire
Output voltage	max 90 VDC at 240VAC input
Current	Continuous 6A , intermittent 12A for 10secs
Resistance	Min.10 ohm , Max 100ohm
Voltage Build-up	residual voltage at avr terminal >5VAC
Voltage Regulation	<±0.5% with 4% engine governing
Operating Temperature	(-40°C to +65°C
Storage Temperatue	(-40°C to +85°C
External Volts Adjutment	±7% with 1k ohm 1 watt trimmer
EMI Suppression	Internal electromagnetic interference filtering
Unit Power Dissipation	Max.8 watt
Under Frequency Protection	60Hz system presets knee point at 57Hz
	50Hz system presets knee point at 47Hz
Dimensions	157mmL117mmW70mmH

The following are our products:

1. CF Brushless AVR: CF-8A, CF-12A, CF-15A, GAVR-15A, SAVRH-75A, SAVRH-PCB, SAVRL-75A, SAVRL-PCB.

2. Stamford AVR: AS440, MX321, MX321-A, MX341,MX341-A, SX440, SX440-A, SX440-T, SX460, SX460-A.

3. Leroysomer AVR: R230, R438,R448, R449, SSAYEC432.

4. Marathon AVR: SE350.

5. Brush AVR: DX-2E, DX-5E, DX-7E, DX-8E, DX-11E, DX-05A.

6. Engine Governor: 3036453, 34008326, EFC3044196, ESD5111, ESD5500E.

7. Controller: CTR101, CTR168, DSE501K, DSE5110

Packaging & Shipping

Packaging: Standard Carton Packing

Payment Terms:

1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.

2.All major Credit cards are accepted through secure payment processor ESCROW.

Shipment Terms:

1. We Ship to Worldwide, except APO/FPO

2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.

Our Services

1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.

2.Started export since the year of 2008,with quick response to serve the oversea customers

3.Have already passed the strict quality inspection of ISO9001:2000 quality management system

4.Strong R&D Team to design and test products

5.Professional designers and technicians to provide technical assitance

6.Strict quality control process with strict standards

7.Strong installation consulting support

8.Quick after-sale technical advice and guidance
