Home > Products > CF Brushless AVR > Factory Price !!! GAVR-20A Avr Automatic Voltage Regulator

Factory Price !!! GAVR-20A Avr Automatic Voltage Regulator

FOB Price

US$ 30 - 40 / Piece

1 Piece(Min. Order)

Port Fuzhou / Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Chengfeng
Model Number	GAVR-20A	Usage	Other, JIW, Regulating Voltage for Generator
Phase	Single Phase	Current Type	AC

Product Description

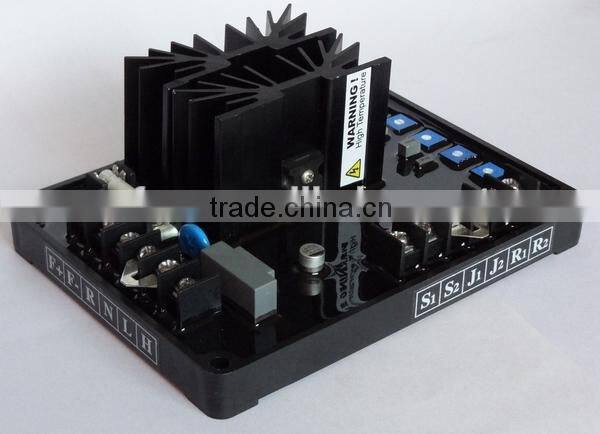

Factory Price !!! GAVR-20A avr Automatic Voltage Regulator :

CF-20A AVR: applicable to Brushless Generator.

Product Description

Technical parameter:

Model	GAVR-20A
Sensing Input Voltage	220/400VAC,1phase 2wire
Power Input Voltage	180~240VAC, 1phase 2wire
Output	Voltage Max.90VDC@240VAC input
	Current Continuous 6A
	Intermittent 15A for 10SEE
	Resistance Min.10Ω Max 100Ω
Voltage Build-up	esidualvolts at AVR teminal >5VAC
External Volts Adjustment	+/-7%with 1KΩ 1watt trimmer
Unit Power Dissipation	Max.8Watt
Under Frequency Protection	60Hz system presets knee point at 57Hz
Factory Settings	50Hz system presets knee point at 47Hz

Packaging & Shipping

Packaging: Standard Carton Packing

Payment Terms:

1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.

2.All major Credit cards are accepted through secure payment processor ESCROW.

Shipment Terms:

1. We Ship to Worldwide, except APO/FPO

2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.

Our Services

1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.

2.Started export since the year of 2008,with quick response to serve the oversea customers

3.Have already passed the strict quality inspection of ISO9001:2000 quality management system

4.Strong R&D Team to design and test products

5.Professional designers and technicians to provide technical assitance

6.Strict quality control process with strict standards

7.Strong installation consulting support

8.Quick after-sale technical advice and guidance
