Home > Products > Din-rail power supply > FP500D-24MDA 500W 24Vdc Digital Display Din-Rail Switch Power Supply With 100-120VAC or 200-240 VAC Input
FP500D-24MDA 500W 24Vdc Digital Display Din-Rail Switch Power Supply With 100-120VAC or 200-240 VAC Input
- Guangzhou;Shenzhen
- Credit Card
You May Like
-
Micro Switch Power Supply 24V 2.1A 50W Transformer 220VAC to DC 24V Output
-
FF-12 Series Fiber Amplifier, Potentiometer Adjusting, Fiber Optical Sensors Quality Choice
-
F&C FF-303 Series Fiber Amplifier, Digital Panel, Two Color, Three Bit Digital Display
-
FF-12 NPN PNP General Purpose Fiber Amplifier for Fiber Optic Sensor With CE Certificate
-
F&C 16us NPN Fiber Optical Sensor With CE Certificate
-
F&C FF-12G Green Light Fiber Optic Sensor and Amplifier
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | FP500D-24MDA | Output Power | 401 - 500W | |
| Output Type | Single | Input Voltage | Other, 90-260VAC | |
| Output Voltage | 24V | Output Frequency | 47-63 HZ | |
| Output Current | 20.8A |
Product Description

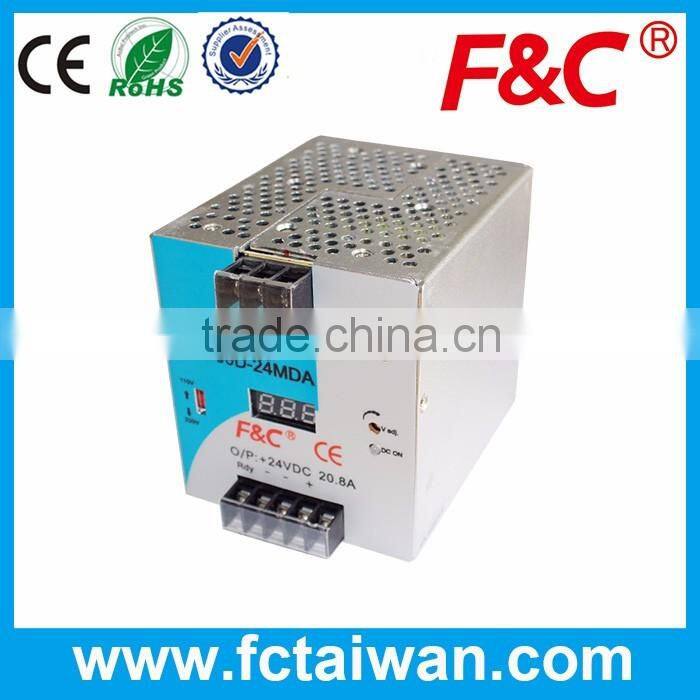

FP500D-24MDA 500W 24Vdc digital display Din-Rail Switch Power Supply with 100-120VAC or 200-240 VAC input
Feature:
1. Screw/Rail dual installation
2. Natural cooling
3. 100% burning
4. Input voltage:90-260VAC
5. Convenient to install
Specification
| FP500D-24MDA 500W 24Vdc digital display Din-Rail Switch Power Supply | |
| Model | FP500D-24MDA |
| Input | 100-120VAC or 200-240VAC |
| Output Voltage | 24V |
| Rated Output Current | 20.8A |
| Current Range | 0-20.8A |
| Rated Power | 500W |
| Ripple And Noise | 240mVp-p |
| Line Regulation | ±1% |
| Load Regulation | ±2% |
| Adjustable Output Voltage | 24V±10% |
| Efficiency | ±46% |
| Vibration | 2G,10-500HZ , 3axes |
| Holding Time | 13ms |
| Input Frequency | 47~63HZ |
| Surgent Current at 25℃ | 20A@110 VAC 40A/220VAC |
| Operating Temperature | -15~50℃ |
| Humidity | 5-95%RH |
| Storage Temperature | -20~85℃ |

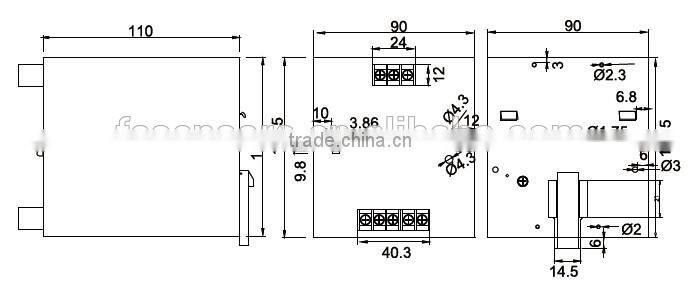

Dimension drawing

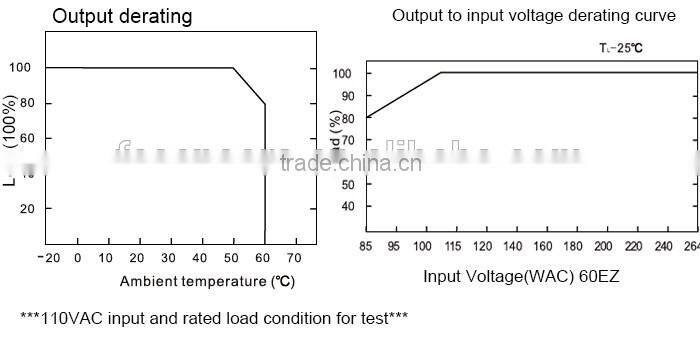

Test result
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber optic lens, Fiber optic Lens,
Proximity Sensor, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,Solid State Relay.
F&C SensingTechnology has been making continuous breakthrough in new technologyand new application. Our target is “What you need can be found in F&C Sensing
Technology”
Welcome to contact me.I can be reached by Skype:lynn_liu123 and Cellphone/Wechat:86-13319542018
