F&C Most Competitive Price Digital Display Fiber Optic Sensor Amplifier
- Shenzhen;Guangzhou
- Credit Card
You May Like
-
Good Price Dia4.0*2m 3 Wires Optical Position Amplifier and Sensor
-
FF-303 PNP Digital Display Fiber Optic Amplifier
-
F&C Low Cost Optical Fiber Sensor Amplifier FF-12 Industrial Amplifier
-
FF-303 Green Light Source Digital Display Fiber Optic Amplifier
-
F&C FF-302 Two Output 12-24VDC NPN Fiber Optic Amplifier
-
High Speed 16us Signal and Digital Optic Amplifier Sensor FF-301
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | FF-303 | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Digital Sensor |
Product Description
FF-303 Most Competitive Digital Fiber Optic Amplifier.
F&C Provide all kinds of fiber optic sensor and lens
Accept OEM Order
Specification
| FF-303 most competitive price digital display fiber optic amplifier | |
| Model | FF-303 |
| Working Voltage | 12~24VDC±10% |
| Current consumption | 400mA Max. |
| Loading current | 100mA Max.at DC24V |
| Output mode | NPN Open collector transistors |
| Max input current: | 100mA |
| Voltage: | 30VDC |
| Residual voltage: | 1.0VDC belowat 50mA current; 0.4V below(current at 16mA) |
| Operation output: | normal open or normal close, can be set by press button. |
| Short circuit protection: | Yes |
| Self-diagnosis | Instability detection output when on, the signal last 40ms (cut off the output automatically when output short circuit protection signals continued to short-circuit the disarmament) |
| Response time/frequency | Universal:switch frequency: 1KHz,response time:500μs |
| Detection distance | reflective:200mm (1mm diameter fiber core ) through-beam:1200mm(1mm diameter fiber core) |
| Indicatior LED | output:(red) stable:(green, please keep this LED non-flashing) |
| Time delay function | 5ms/50ms/500ms/5s/0s,five choice by setting button. |
| Transmission power | 100% / 50% / 25% / 12% Transmitter power can be set in different percentage. |
| Ambient temperature | -20 ~ +70°C |
| Environment humidity | 35 ~85%RH |
| Material | Shell: PC+ABS;Cover: Polycarbonate |
| Accessory | 1pcs of mounting bracket |

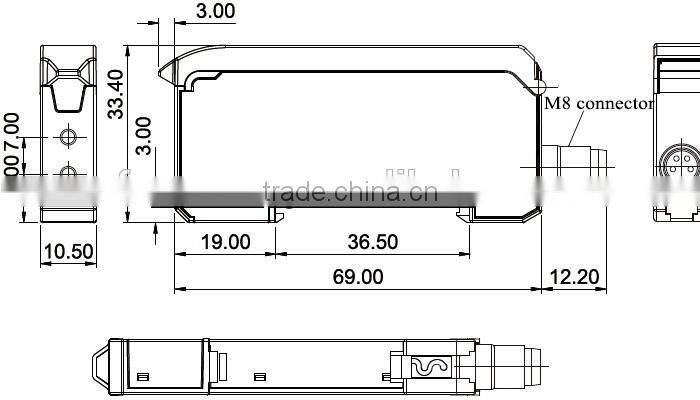

****FF-303 has M8 connector Model****

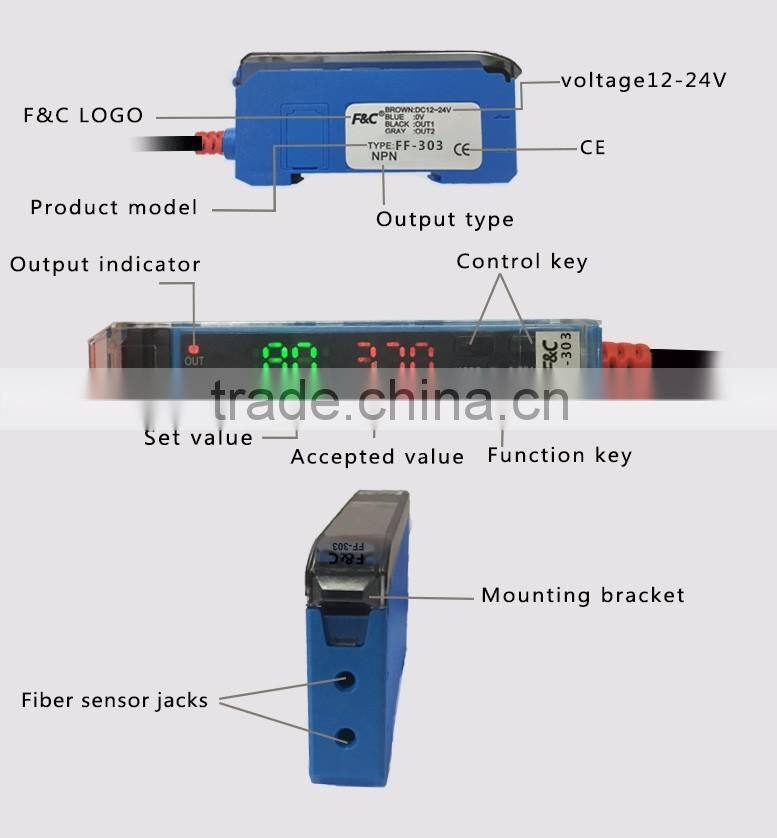

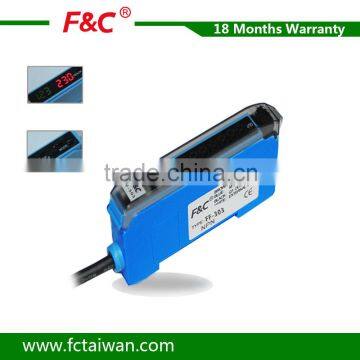

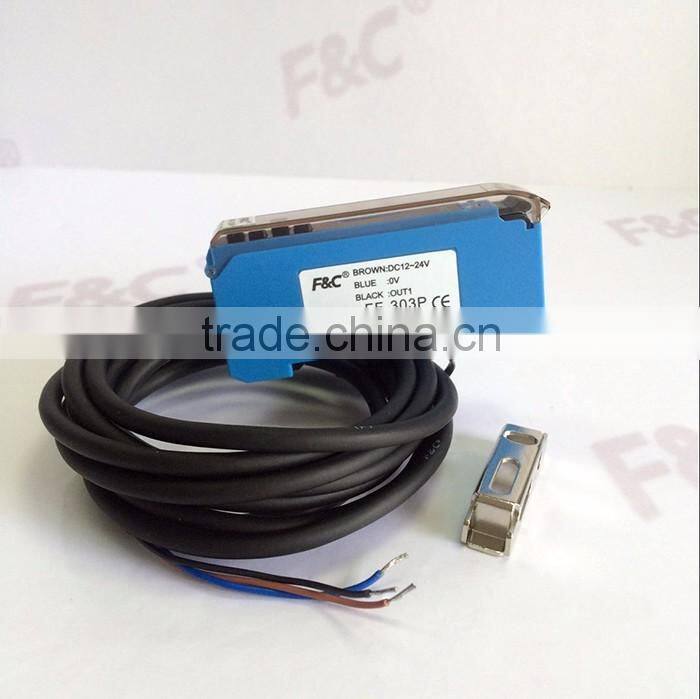

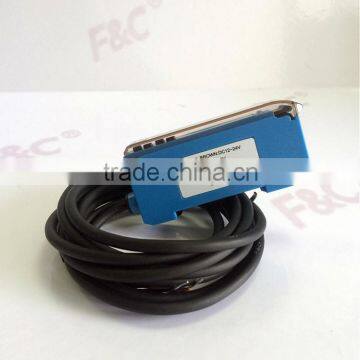

Product Display

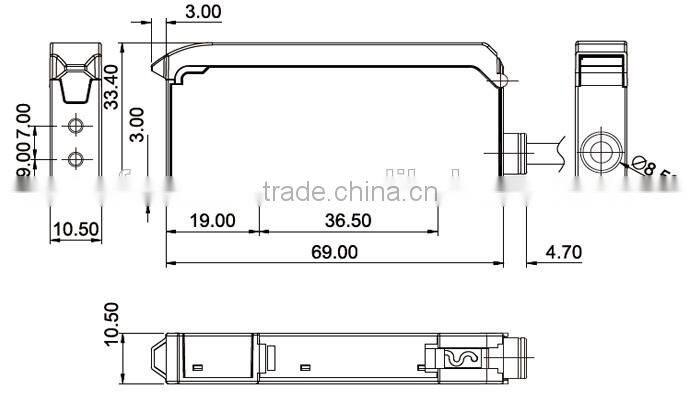

Dimension Drawing

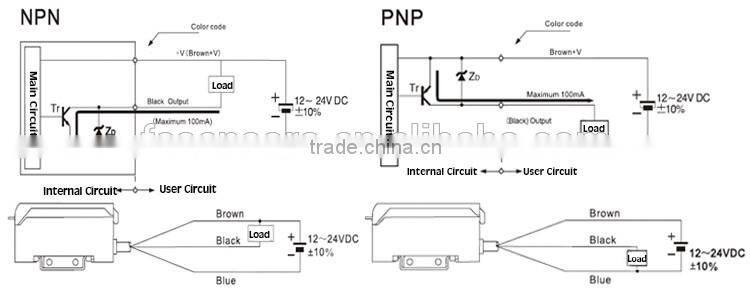

Wiring Drawing
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.

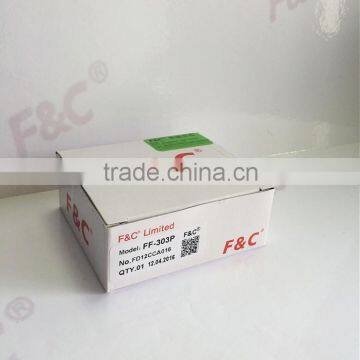

1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,
magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,
solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
I can be reached by cellphone:86-13809275350 and Skype:lynn_liu123
