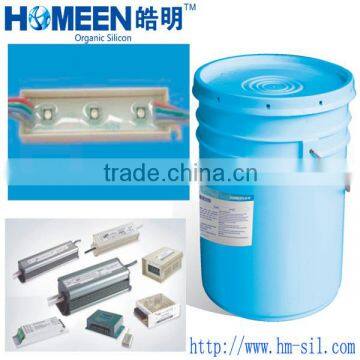

Potting sealing silicone for electronic components

Potting sealing silicone for electronic components  electronic potting compound   electronic silicone potting compound insulated potting adhesive  potting adhesive for PCB

 UL potting silicone rubber  .Neutral sealant,room temperature cure,no corrosion for many kind of material.UL certificate

At the same time ,Haoming emphasizes protection of proprietary intellectual property rights, we value innovation and expand market share with the help of patent . Till present ,we has 3 patents invention, 12 utility model patents,  4 high-tech products, a series of honors and certifications is trustworthy guarantee for global consumers.

Haoming is a leading figure in organic silicon industry and we bear in mind that the true brilliance rely on technical innovation and breakthrough , caustic demand for self-expertise and always provide eco-friendly & safe products to global consumers !

HM-9160

Properties

1.    cure under room temperature,heating can accelerate curing rate.

2.    No solvent or by-products,with tiny contractile.

3.    good dielectric strength and flame retardant

4.    Can be used under -50°C~200°C

Application

1.  Major used in LED driver power as potting material

2.    Major used in junction box in solar PV as potting material

Parameters

Potting sealing silicone for electronic components  electronic potting compound electronic silicone potting compound  insulated potting adhesive  potting adhesive for PCB

 UL potting silicone rubber  .Neutral sealant,room temperature cure,no corrosion for many kind of material.UL certificate

Remark:

1. 1.    Curing rate will be affected by temperature; higher temperature can accelerate the curing rate and make the working time shorter.
2. 2.    This product uses platinum as catalyst, nitrogen, sulphur, phosphorus and organotin components will restrain the curing. So pls clean the remain rosin and try to use solder with low lead.

Packaging

A & B: 20kg/ plastic barrel

Shelf life

should be stored at under 30°C.Shelf life is 9 months after the date of manufacture.Pls completely mix the A and B separately before use.

When apply

Mix two components according to 1:1(volume or weight) completely, to make sure the component distribute even, we suggest can stir the A and B separately before mixing. Pour the mixed material into the element, if want better thermal conductivity, we suggest that could vent the bubble under vacuum environment before pouring. This potting material can be cured under room temperature or by heating. Due to different working time between summer and winter, there are two kinds of potting material.
