Home > Products > SDI Converter > HD SDI To HDMI Converter With Scaler (720P/1080P) HD-SDI/ 3G SDI to HDMI Converter

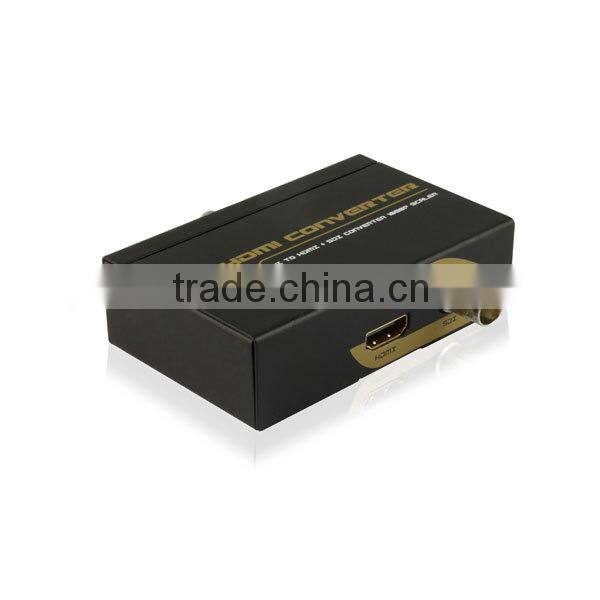

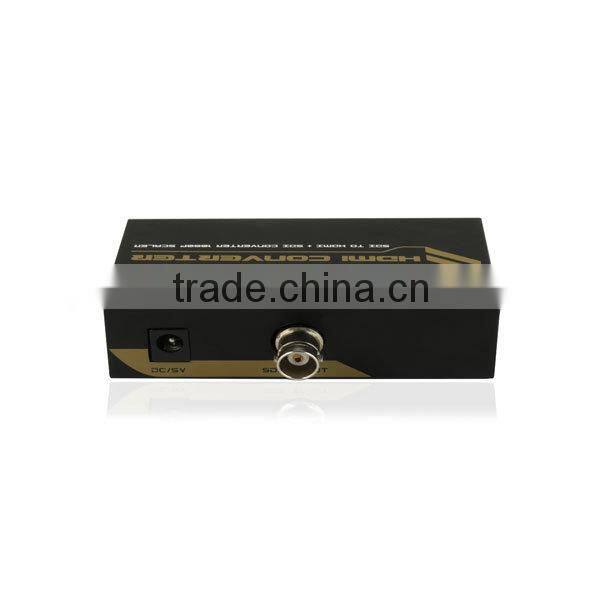

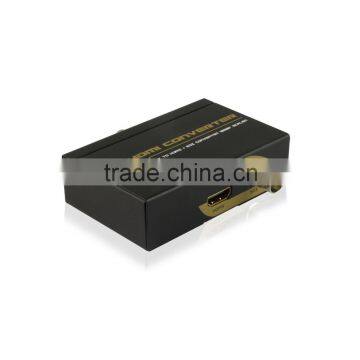

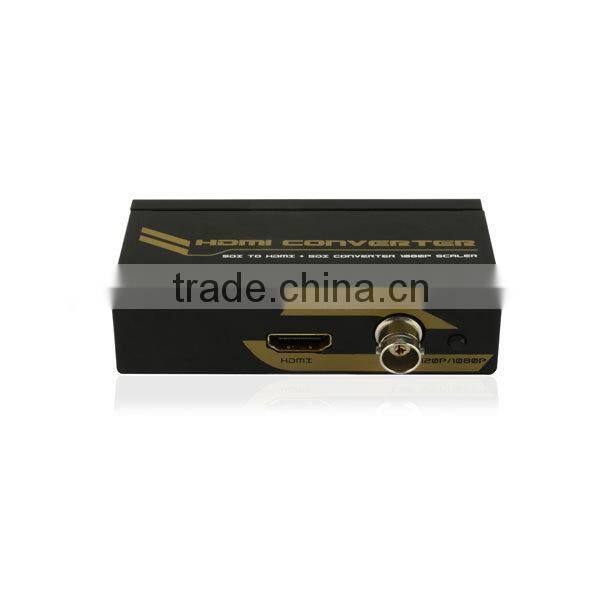

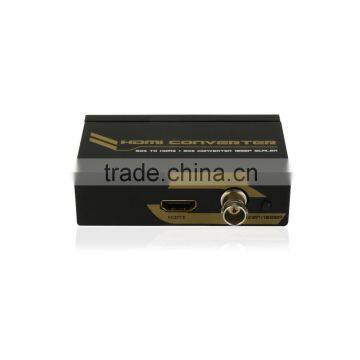

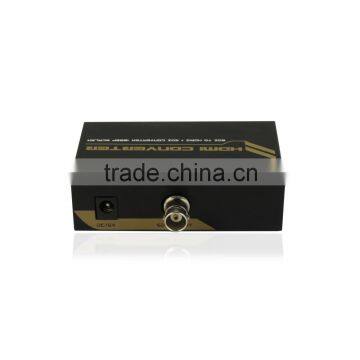

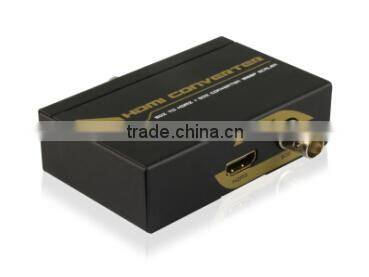

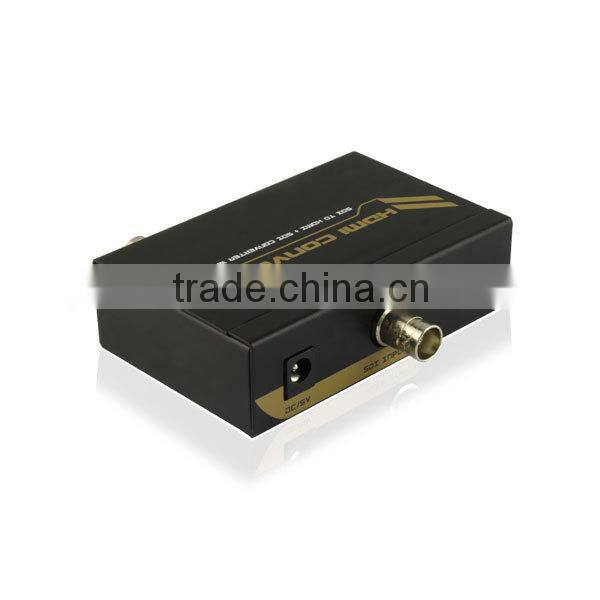

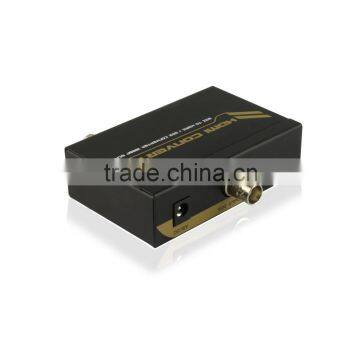

HD SDI To HDMI Converter With Scaler (720P/1080P) HD-SDI/ 3G SDI to HDMI Converter
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot Selling Converter SDI to HDMI +SDI Converter Scaler 720P/1080P
-
SDI To HDMI Converter 1080p 3G/ HD/ SD With Caler SDI Converter to HDMI Out
-
China Manufacturer 3G/SD/HD SDI to HDMI +SDI Converter Adapter Upscale to High Resolution 720P/1080P
-
SDI Converter Adapter SDI Input HDMI+SDI Output Support Upscaling Function Equipped With DC 5V Power Adapter
-
SDI to HDMI+SDI Converter Adapter With Scaler and 5V DC Power Adapter
-
High Definition SDI to HDMI+SDI Converter With Scaler up to 1080p 3D Supported
Product Details
| Brand Name | Protech | Model Number | PETSHS | |
| Place of Origin | Guangdong, China |
Product Description

To ensure you maintain perfect high-definition video quality, the SDI-HDMI converter features supports resolutions up to 1080p, allowing you to convert SDI to HDMI without sacrificing video quality.
For hassle-free installation, the SDI to HDMI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation.
Features
* Input: 1 x SDI;
* Output: 1 x SDI; 1 x HDMI;
* Built-in scaler allows user to adjust the output signal to a resolution (720p/1080p) that is compatible with your HDMI-enabled display.
* No need to install drivers, portable, flexible, plug and play.
* Auto-detect resolution of HD-SDI, SD-SDI and 3G-SDI.
* Data transfer rate: 270Mb/s,1.485Gb/s, 2.97 Gb/s.
* Coaxial cable impedance: 75Ω

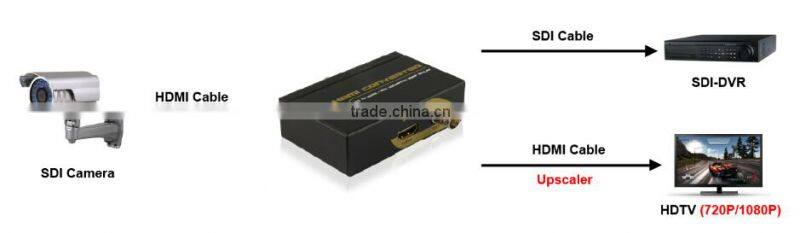

* Output to an HDMI Display for 15m (50 feet) max, SDI display for 100m (328 feet) max and continue your SDI run up infinitely using the daisy chain port
Specification
Input Signal | SDI Signal (HD-SDI, SD-SDI and 3G-SDI) |
Output Signal | HDMI x1,SDI x1 |
SDI Data Transfer Rate | 270Mb/s, 1.485Gb/s, 2.97Gb/s |
SDI Input Resolution | 480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz, 1080i@50Hz/1080i@60Hz; 1080P@24Hz@25Hz@30Hz@50Hz@60Hz |
SDI Output Resolution | 480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz, 1080i@50Hz/1080i@60Hz; 1080P@24Hz@25Hz@30Hz@50Hz@60Hz |
HDMI Output | 720P@60Hz,1080P@60Hz |
Limited Warranty | 1 Year Parts and Labor |
Operating Temperature | 0℃ to +50℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 90 % RH (no condensation) |
Power Supply | 5V DC |
Power Consumption (Max) | 5W |
Converter Unit Cert. | FCC,CE, |
Package Content
1. Main Unit
2. User Manual
3. USB Power Manual
Package Type
1. Foam package, save shipping cost
2. neutral gift box, beautiful in appreance
3. Customized package

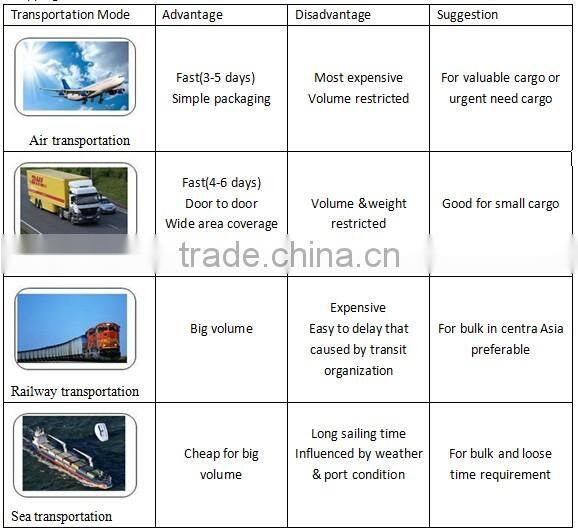

Shipping and delivery
Our Service
1 Inquiry response: your inquiry will be replied within 24 hours
2 Sample Support: we can provide samples within 2 days after confirmation.
3 Delivery Time: depends on the quantity and courier type, usually 5-30days.
4 Warranty: 1 year parts and labor
5 OEM/ODM service
About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,
owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production.
Protech always persists with high quality; it is operated strictly according to the standard operating procedures and rules. With the rich and applicable laboratory equipments, high quality makes every client satisfactory.
Protech is committed to the green products and has the comprehensive RoHS,CE,FCC system. We are also one of the HDMI Adopter manufacturers .
Protech has consistently advocated high quality with reasonale price, it relies on mass production to reduce costs, thereby it creates so much value.
We welcome all friends and merchants to establish cooperative relationships with us. Please contact us for more information on our company and products.
Certificate

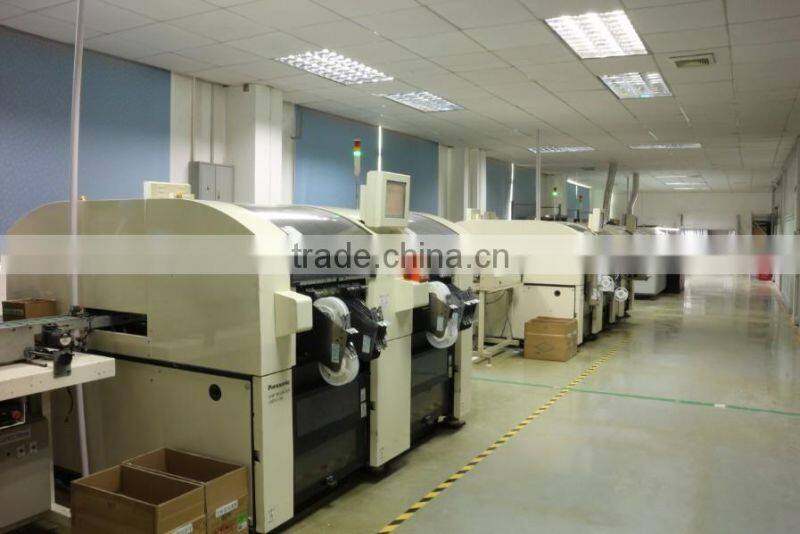

Workshop
FAQ
Q1: Are you manufacturer? If so, where are you?
A1: yes, we are manufacturer. We located in Shenzhen, China. And the FOB Shenzhen port is Yantian/Shekou.
Q2: Can I customized my product in your factory?
A2: Sure, we offer OEM service.
Q3: Do your product comes with a warranty?
A3: yes, 1 year parts and labor.
Q4: Can you give me a discount?
A4: Yes, the discount comes with different quantity. If the order quantity exceed 50pcs, we will give you a discount, if exceed 100pcs, another discount, if exceed 300pcs, 500pcs, 1000pcs, 2000pcs..., the more quantity your order, the lower price you will get.
Q5: What information should I provide if i want to get a quotation?
A5:
For our product with totally our design | Item name, order quantity, shipping term(EXW/FOB etc) |
For OEM items | Item description, detailed spec, color, package content, order quantity, shipping terms, photo |
Q6: How many days will the sample be available? And what about the mass production?
A6: sample will be sent out within 3 days after sample cost is settled and confirmed. For mass production, ready in 1-3 days with stock, 1-3 weeks for those without stock.
Q7: what is your inspection procedure?
A7: 1st inspection: when the raw material is sourced, we will have a 100% inspection.
2nd inspection: during production, we will inspect goods randomly
3rd inspection: after
production is finished. Our QC department will choose 10-50% completed goods for inspection. The inspection percent depends on the order quantity!
Q8: how do you ship the goods?
A8: by sea, by air, by courier(DHL/UPS/FedEx/TNT etc)
Contact Us
- Shenzhen Protech Electronics & Technology Limited
- Contact nameKingsley Pang Chat Now
- Phone86-755-89541912
- AddressNO.6 Baofu Road, Shangmu Gubaolai Industrial Park, Pinghu, Longgang District, Shenzhen, China, Shenzhen, Guangdong
