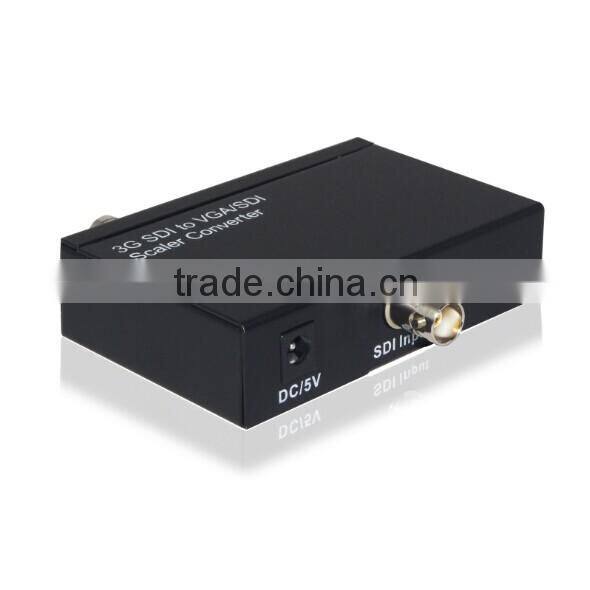

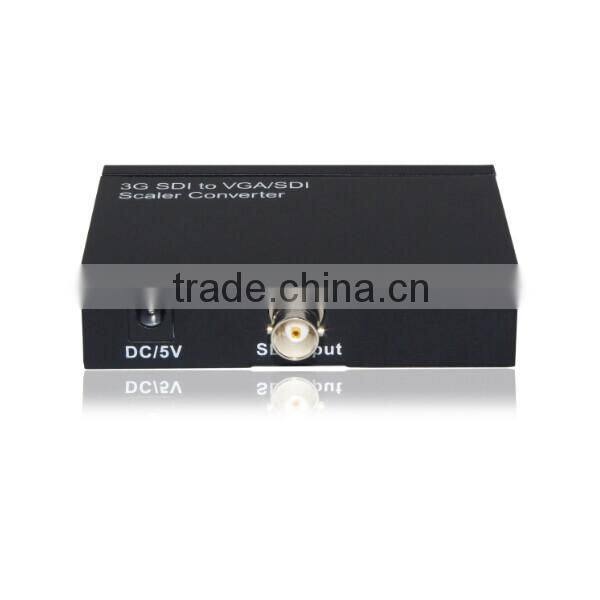

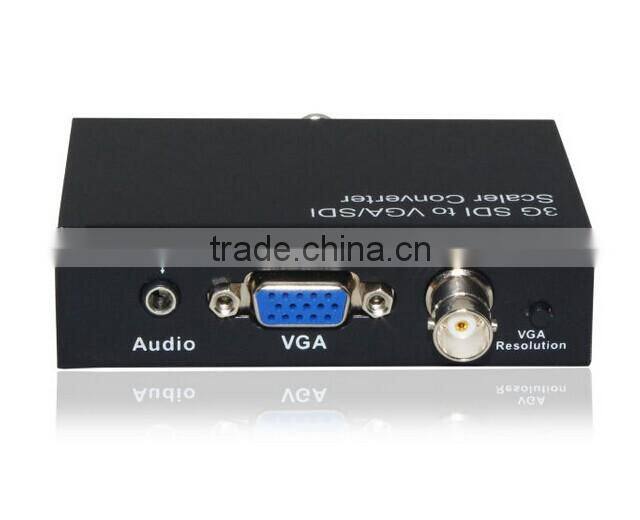

Shenzhen Factory SDI to SDI VGA Converter With Audio Mini Size SDI Scaler Converter 1080p
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Retailer SDI Signal to SDI Converter 1080p With 3.5mm Small Size SDI Scaler Converter
-
Wholesale SDI Signal to SDI Converter 1080p With 3.5mm Small Size SDI Scaler Converter
-
Professional Manufacture SDI to VGA Converter With 3.5mm Mini Size SDI Scaler Converter 1080p
-
New Model HD SDI to SDI VGA Converter With 3.5mm Stereo 1080P With ABS Shell
-
SDI to SDI + VGA With 3.5mm Converter 1080P SDI Input Output Converter Box With VGA and Audio
-
Fashional Model 3G SDI to VGA Scaler Converter With 3.5mm Stereo SDI to SDI Converter
Product Details
| Brand Name | Protech | Model Number | PETSV | |
| Place of Origin | Guangdong, China |
Product Description
Shenzhen Factory SDI to SDI VGA Converter With Audio Mini Size SDI Scaler Converter 1080p
Specification:
| Product Name | SDI to SDI VGA Converter With Audio |
Model NO | PETSV |
Signal Inputs | SDI Signal (HD-SDI, SD-SDI and 3G-SDI) |
Output Video | VGA Signal |
SDI date rate | 270Mb/s, 1.485Gb/s, 2.97Gb/s |
SDI input resolution | SD 525i, 625i; HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ, HD 1080i@50HZ; 1080i@60HZ; HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ,1080P@60HZ Recommended resolution: 720P@50/60HZ, 1080P@50/60HZ |
Limited Warranty | 1 Year Parts and Labor |
Operating Temperature | 0°C to +50°C |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10°C to +80°C |
Storage Humidity | 5% to 90 % RH (no condensation) |
Power Supply | 5V DC Power Adaptor |
Power consumption (Max) | 5W |
Converter Unit Cert. | FCC,CE, |
User Manual | English Version |
Description
The SDI to SDI+VGA Converter designed to converts 3G-SDI, HD-SDI or SD-SDI signal to SDI and VGA Signals. it supports SDI audio de-embedded output to analog ports. it also supports the "frequency conversion" function,it can be force any frequency SDI signal "conversion" standard VGA signal output. Output resolution via digital coding switch selection, easy to use.

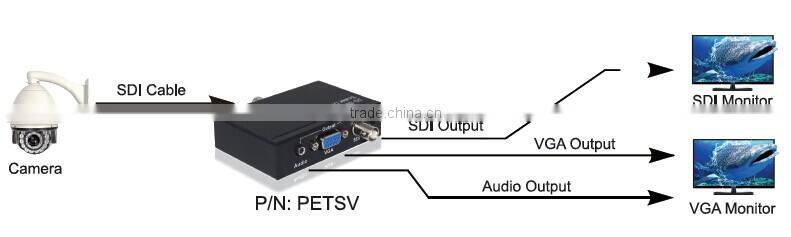

Diagram
Features
* SDI interface operates at bitrates: 2,970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
* Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
* SDI resolution supported: 480i/60HZ, 576i/50HZ, 720P/50HZ, 720P/60HZ, 1080i/50hz, 1080p/60HZ
* VGA resolution supported: 800x600@60HZ, 1280x720@60HZ, 1280x1024@60HZ, 1360x768@60HZ, 1440x900@60HZ, 1600x1200@60HZ
Advantages
1) We are one member of HDMI Association, export to any country is legal .
2)Specialized in HDMI products manufacture more than 6 years, stronger research and development team
3) 0 Risk for clients.More overseas exhibitions (Hongkong,Americal,Brazil,Germany etc.) are convenient for testing our products
4) Most regular customers from U.S.A , Brazil, Europe countries, Russia, Australia
5) OEM, ODM service avaliable
6) Stronger aftersales (RMA) service as manufacture.
7) Certs : CE, FCC, RoHS, HDMI Power Adaptor
Package Content
1) Main unit
2) 5V DC Power Adaptor
3) User Manual.
