Product Details
| Brand Name | Protech | Model Number | PETSC | |
| Place of Origin | Guangdong, China |
Product Description

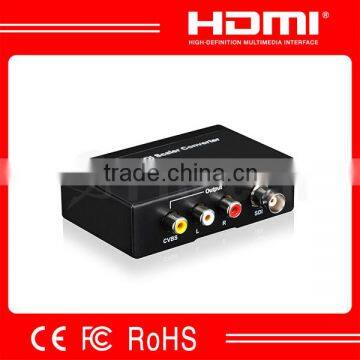

SDI to AV videoI +SDI Scaler Converter 3G/HD/SD/SD-SDI
The SDI to AV converter enables you to turn a 3G/SD/HD-SDI video signal into an AV video output and an SDI display. The device comes with a scaler that will allow you to adjust the output signal to a resolution (480i/576i) that is compatible with your legacy A/V display. The converter also features an SDI loop out for distributing the SDI signal at 300m away for SDI-SDI signal, 200m way for HD-SDI signal and 100m for 3G-SDI signal.
2.0 Features
*Support date transfer rate2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps
*Support equalization and signal re-clocked loop out
*Support auto video mode detection for 3G/HD/SD-SDI signal
*Simultaneous display for SDI and AV signals
*Support LPCM 2.0 channel audio
*Support signal transmission distances up to 300M for SD-SDI signal, 200M for HD-SDI signal and 100M for 3G-SDI signal
Note: Distance tested via standard Belden 1694A cable. Operating distances may vary for cable with different specs.
3.0 Specifications
Input Signal | SDI Signal (HD-SDI, SD-SDI and 3G-SDI) |
Output CVBS Signal | PAL/NTSC |
SDI Data Transmission Rate | 2.970 Gbps and 2.970/1.001 Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps |
SDI In/Out Resolution | SD-SDI:480i@60Hz,576i@50Hz HD-SDI:720p@50/60Hz,1080i@50/60Hz 3G-SDI:1080p@24/25/29.97/30/50/59.94/60Hz |
Limited Warranty | 1 Year Parts and Labor |
Operating Temperature | 0℃ to +50℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 90 % RH (no condensation) |
Power Supply | 5V DC |
Power Consumption (Max) | 5W |
Converter Unit Cert. | FCC,CE,RoHS |
User Manual | English Version |
Note: Specification is subject to change without prior notice.
4.0 Package Contents
1) Main Unit
2) 5V DC Power Supply
3) User Manual
Certificates
Certifications: CE, FCC, HDMI Adopter, REACH, RoHS
