Product Details
| Brand Name | Protech | Model Number | 4PET0201B | |
| Place of Origin | Guangdong, China |
Product Description

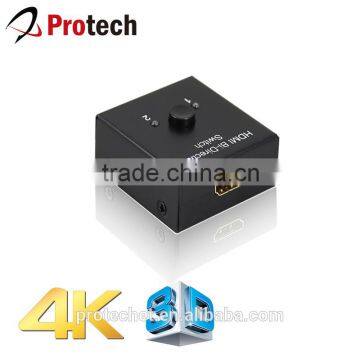

HDMI Bi-Direction 2 to 1 Switcher, 1 to 2 Splitter
1.0 Introduction
This is one device of HDMI 2 ports bi-direction manual switches. It can easily switch two routes of HD Source to any one HD display or projector Also it can distribute one HD Display or projector.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 Feature
* 2 HDMI-Host (DVD player or PS3) to 1 HDMI or TV
* 1 HDMI-Host (DVD player or PS3) to 2 HDMI or TV
* MAX operation current:15ma
* Full compliance with the HDMI Specification V1.0,V1.1, V1.2, V1.3,V 1.4
* Main control: Manual electron select
* With 2 LED & display working port
* LED 2(Blue), Display working port
* Easy install & operation
* Support HDMI Plug& Play
* Support input up to 5metres AWG26 HDMI standard cable length output up to 5metres AWG26 cable length
* Support 3D
3.0 Specification
Input DDC Signal | 5 volts p-p (TTL) |
Maximum Single Link Range | 4Kx2K |
Output Video | V1.0,V1.1, V1.2, V1.3,V 1.4 |
Vertical Frequency Range | 50/60Hz |
Video Amplifier Bandwidth | 3.4Gbps/340MHz |
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p,4Kx2K |
Limited Warranty | 1 Year Parts and Labor |
Operating Temperature | 0 ℃ to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 90 % RH (no condensation) |
External Power Supply | No power needed |
Power consumption (Max) | 5W |
User Manual | English Version |
Note: Specifications are subject to change without notice.
4.0 Package Content
1) Main unit.
2) User's Manual
