Home > Products > Electric Chain Hoist & Wire Rope Hoist > Portable Bolt on Webing Winch

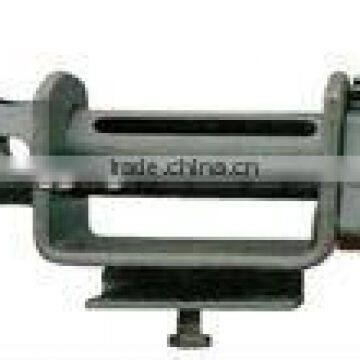

Portable Bolt on Webing Winch
- 0 per Month
- Qingdao/Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | superior | |
| Power Source | Electric | Application | Auto |
Product Description
Specifications
truck winch1.12307C-20Standard Combination Weld On Box Winches
2.Functional
3.Convenient and Safe
4.High Quality
PRODUCT STRUCTURE
The INYJ series compact winches are patent product of our company.
The hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch, so the overall length is kept to the minimum. The compact design is very suitable for applications where the installing room is limited.
Hydraulic winches are needed in many heavy indutries and have diverse application. We manufacture these winches with most rugged steel so that they are durable and have a long lifetime. We have a variety of hydraulic winches to best suits customers needs. Except for standard winches, we’re also able to provide tailored solutions to our customers.
The winches are not only popular in Chinese market, but also in international market.
MAIN FEATURES
• Compact and elegant design, easy to install
• high starting& working efficiency
• Reliable operation with little noise
• Stable operation in hot, cold, wet, damp and other extreme working environments
• Low maintenance relieves your anxiety
• A range of accessories such as rope guides and pressure rollers are available on request.
E9500 SPECIFICATIONS
| Rated line pull: | 9500 Lbs (4310kgs) single line. | ||||||
| Motor: | Series wound 6.0 hp /4.4kw,12V DC | ||||||
| Gear Train: | 3 stage planetary | ||||||
| Gear ratio: | 212:1 | ||||||
| Clutch: | Sliding Ring gear | ||||||
| Braking action: | Automatic in the drum | ||||||
| Fairlead: | 4-way Roller fairlead | ||||||
| Wire rope: | 5/16"×92'(7.8mm ×30m) | ||||||
| Drum size: | 2.5"×9.0"(63mm×224mm) | ||||||
| Dimensions: | 23"×6.7"×8.4"( 552mm×170mm×214mm) | ||||||
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) | ||||||
| Battery | Recommended 650 CCA minimum for winching 25 square mm,72″(1.83m) | ||||||
| N.W: | 86 lbs (39kgs) | ||||||
| Packing: | 620mm X 200mm X 390mm 400pcs per 20' container | ||||||
| PERFORMANCE | |||||||
| Line speed and motor current (first layer) | Line pull | Lbs | 0 | 2000 | 6000 | 8000 | 9500 |
| Kgs | 0 | 907 | 2722 | 3629 | 4309 | ||
| Line speed | FPM | 29.5 | 13.5 | 9.2 | 7.5 | 6.7 | |
| MPM | 9 | 4.1 | 2.8 | 2.3 | 2.1 | ||
| Motor current | Amps | 70 | 120 | 170 | 220 | 300 | |
| Line pull and cable capacity | Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 9500 | 8070 | 7250 | 6600 | ||
| Kgs | 4310 | 3660 | 3289 | 2994 | |||
| Cable capacity per layer | Ft. | 17.7 | 40.7 | 67.9 | 98.4 | ||
| M | 5.4 | 12.4 | 20.7 | 30 | |||
