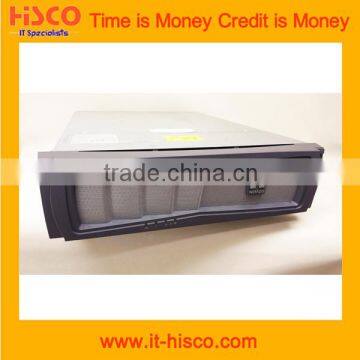

Netapp Data Storage FAS3250 with Expanded I/O
Negotiable
/ Piece
1 Piece(Min.Order)
- Shenzhen
- Credit Card
You May Like
Product Details
| Products Status | Stock | Size | Other, 2.5'', 3.5'' | |
| Case Material | Aluminum | External Interface | Other, SAS, FC | |
| Internal Interface | Other, SAS, FC | Brand Name | NetApp | |
| Model Number | FAS3250 | Place of Origin | Singapore |
Product Description
Company Information
1. Integrator of HP.
2. Partner of Dell and NetApp.
3. Agent of IBM, EMC, Juniper and Qlogic.
4. Professional on handling and customizing projects and IT solutions.
5. Spirit of keeping long-term business relationship.
Product Description
Netapp Data Storage FAS3250 with Expanded I/O
Technical specifications
| FAS3250 with Expanded I/O | FAS3220 with Expanded I/O | FAS3220 | |
| Maximum System Capacity | 2,880TB | 1,920TB | 1,920TB |
| Maximum Drives | 720 | 480 | 480 |
| Controller Form Factor | Dual enclosure HA; 2 controllers in two 3U chassis, total of 6U | Dual enclosure HA; 2 controllers in two 3U chassis, total of 6U | Single enclosure HA; 2 controllers in single 3U chassis |
| Memory | 40GB | 24GB | 24GB |
| Maximum Flash Cache | 2TB | 1TB | 1TB |
| Maximum Flash Pool | 4TB | 1.6TB | 1.6TB |
| Maximum Total Flash | 4TB | 1.6TB | 1.6TB |
| PCIe Expansion Slots | 12 | 12 | 4 |
| Onboard I/O: 4Gb FC | 4 | 4 | 4 |
| Onboard I/O: 6Gb SAS | 4 | 4 | 4 |
| Onboard I/O: GbE | 4 | 4 | 4 |
| Storage Networking Supported | FC; FCoE; IP SAN (iSCSI); NFS; CIFS/SMB; HTTP; FTP | ||
| OS Version | Data ONTAP® 8.1.2 and later | ||
| High-Availability Features | Alternate Control Path (ACP); Ethernet-based service processor and Data ONTAP management interface; redundant hot-swappable controllers, cooling fans, power supplies, and optics | ||
| Supported Configurations | Highly available controller configurations Active-active controller with controller failover and multipath HA storage Active-active controller with stretch (nonswitch) and fabric-attached MetroCluster™ V-Series Clusters of HA pairs (see clustered Data ONTAP support table) | ||
| Disk Shelves Supported | DS2246 (2U; 24 drives, 2.5" SFF) DS4246 (4U; 24 drives, 3.5" LFF) DS4486 (4U; 48 drives, 3.5" LFF) DS4243 (4U; 24 drives, 3.5" LFF) See NetApp Disk Shelves and Storage Media for more details on each disk shelf and supported drive types. | ||
| Maximum RAID Group Sizes | RAID 6 (RAID-DP) SAS and FC: 28 (26 data disks plus 2 parity disks) SATA: 20 (18 data disks plus 2 parity disks) RAID 4 FC: 14 (13 data disks plus 1 parity disk), SATA: 7 (6 data disks plus 1 parity disk) RAID 6 + RAID 1 or RAID 4 + RAID 1 (SyncMirror) | ||
| Operating Systems Supported | Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux®, Sun Solaris, AIX, HP-UX, Mac® OS, VMware®, ESX | ||
| Max. Number of LUNs | 8,192 per controller | ||
| Number of Supported SAN Hosts | Up to 512 hosts per HA pair Up to 24 directly connected servers per HA pair | ||
| FlexVol Volumes | FAS3250 up to 1,000 per controller with clustered Data ONTAP 8.2, otherwise up to 500 per controller | ||
| Snapshot Copies | Up to 127,000 per controller | ||
| Maximum Aggregate Size | 240TB | 180TB | 180TB |
| Maximum Volume Size | 70TB | 60TB | 60TB |
| Maximum port count includes integrated ports and PCIe expansion slots | |||
| FC Target Ports (16Gb/8Gb/4Gb) (max.) | 24 | 24 | 10 |
| 10GbE/FCoE Target Ports UTA, UTA2 (max.) | 24 | 24 | 8 |
| GbE (max.) | 52 | 52 | 20 |
| 6Gb SAS (max.) | 52 | 52 | 20 |
| FC Initiator (max.) | 52 | 52 | 20 |
| Maximum Adapters | |||
| Dual 10GbE (optical or copper) | 12 | 12 | 4 |
| Dual 10Gbase-T (RJ-45, CAT 6A-E) | 12 | 12 | 4 |
| Quad GbE (copper) | 12 | 12 | 4 |
| Dual 10GbE/FCoE 16Gb FC Unified Target Adapter 2 (UTA2, optical or copper for 10GbE/FCoE deployments, optical for 16Gb FC) | 12 | 12 | 4 |
| Dual 10GbE FCoE SAN Unified Target Adapter (UTA, optical or copper) | 12 | 12 | 4 |
| 8Gb FC Target (optical) | 12 | 12 | 4 |
| Dual 8Gb VI for SnapMirror® over Fibre Channel (SMoFC) | 2 | 2 | 2 |
| Flash Cache Performance Acceleration Module (1TB) | 2 | N/A | N/A |
| Flash Cache Performance Acceleration Module (512GB) | 4 | 2 | 2 |
| Quad 6Gb SAS Storage HBA | 12 | 12 | 4 |
| Quad 4Gb FC Storage/Tape HBA | 12 | 12 | 4 |
| Dual SCSI Tape HBA | 12 | 12 | 4 |
| Clustered Data ONTAP Support | |||
| Cluster nodes | NAS: Up to 8 cluster nodes SAN: Up to 8 cluster nodes Cluster nodes = single storage controllers All cluster nodes are configured in HA pairs | ||
| Cluster data communication interconnect | Dual 10GbE | ||
| Cluster capacity | Up to 11.5PB | ||
| Storage protocols | FC, FCoE, iSCSI, NFS, pNFS, CIFS/SMB | ||
| Optional software | Refer to FAS3200 series software tab | ||
| System Environmental Specifications | |||
| Thermal Rating | 1,393 BTU (typical) 1,867 BTU (worst case) | 1,256 BTU (typical) 1,707 BTU (worst case) | 1,591 BTU (typical) 2,168 BTU (worst case) |
| Weight | 148 lb | 80 lb | 80 lb |
| Height | 10.2" (26 cm), fits into 6U space | 10.2" (26 cm), fits into 6U space | 5.1" (13 cm), fits into 3U space |
| Width | 19" IEC rack-compliant (17.6", 44.7 cm) | ||
| Depth | 24" (26.5" w/cable management) | ||
| Operating Temperature, Altitude, and Relative Humidity | 10° C to 40° C (50° F to 104° F); at <= 3,000 m (at <= 10,000' feet) elevation; 20% to 80% relative humidity, noncondensing (28° C wet bulb temperature) | ||
| Nonoperating Temperature and Relative Humidity | -40° C to 65° C (-40° F to 149° F); 5% to 95% relative humidity, noncondensing, in original container | ||
| Operating Acoustic Noise | ≤ 61 dBA sound pressure (LpA) @ normal operating conditions (at 22°C and at sea level) | ||
| Compliance | RoHS-compliant PDF | ||
| Safety/Emissions/Immunity | Safety: EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, GOST-R, BSMI, SONCAP, NRCS LOA (South Africa) Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI | ||
| NetApp Systems Cabinet | |
| Rack Space | 42U |
| Dimensions (height/width/depth) | 78.75" (200 cm)/23.6" (60 cm)/44.3" (112.5 cm) |
| Minimum Cabinet Clearances for Airflow | 10" (25.4 cm) front and 12" (30.5 cm) rear |
| Minimum Cabinet Clearances for Service | 30" (76.3 cm) front and rear, 12" top |
| AC Power | 200 to 240VAC |
| Current | 30A Single Phase or 3-Phase |
| Weight (empty) | 307 lbs (138 kg) |
| Features | Split rear door with cable egress opening Reversible front door (left- or right-handed) |
| Regulations | FAS3200 Series Storage System |
| Safety/Emissions/Immunity | Safety: EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, GOST-R, BSMI, SONCAP, NRCS LOA (South Africa) Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI |
