Home > Products > NetApp > FAS2554-303-R6-C FAS2554,24x2TB,7.2K,-C

FAS2554-303-R6-C FAS2554,24x2TB,7.2K,-C

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Size	Other, 2.5'', 3.5''
Case Material	Aluminum	External Interface	Other, SAS, FC
Internal Interface	Other, SAS, FC	Brand Name	NetApp
Model Number	FAS2554	Place of Origin	Singapore

Product Description

Company Information

1. Integrator of HP.

2. Partner of Dell and NetApp.

3. Agent of IBM, EMC, Juniper and Qlogic.

4. Professional on handling and customizing projects and IT solutions.

5. Spirit of keeping long-term business relationship.

Product Description

FAS2554-303-R6-C NetApp FAS2554,24x2TB,7.2K,-C

Technical specifications

FAS2554		FAS2552		FAS2520
	Single Controller	Dual Controller	Single Controller	Dual Controller	Single Controller	Dual Controller
Max. Raw Capacity	864TB	864TB	763TB	763TB	504TB	504TB
Internal Drives	24	24	24	24	12	12
Supported Internal Drives
Performance HDD	N/A		600GB, 900GB, 1.2TB		600GB, 900GB, 1.2 TB
Capacity HDD	2TB, 3TB, 4TB,6TB		N/A		2TB, 3TB, 4TB,6TB
SSD	200GB, 400GB, 800GB		200GB, 400GB, 800GB, 1.6TB		200GB, 400GB, 800GB, 1.6TB
Self-encrypting Drives	4TB at 7.2K RPM AES-256, FIPS 140-2 compliant		900GB at 10K RPM, 800GB SSD AES-256, FIPS 140-2 compliant		900GB at 10KRPM, 4TB at 7.2K RPM AES-256, FIPS 140-2 compliant
Max. Drives (Internal + External)	144	144	144	144	84	84
ECC Memory	18GB	36GB	18GB	36GB	18GB	36GB
Controller Form Factor	1 or 2 controllers in a single 4U chassis		1 or 2 controllers in a single 2U chassis		1 or 2 controllers in a single 2U chassis
Maximum Flash Pool	16TB[1]	16TB[1]	16TB[1]	16TB[1]	16TB[1]	16TB[1]
NVMEM/NVRAM	2GB	4GB	2GB	4GB	2GB	4GB
Onboard I/O: UTA 2 (8Gb FC/16Gb FC/FCoE/10GbE/1GbE[2])	4[3]	8[3]	4[3]	8[3]	N/A	N/A
Onboard I/O:	N/A	N/A	N/A	N/A	4[4]	8[4]
10G Base-T	N/A	N/A	N/A	N/A	4[4]	8[4]
Onboard I/O: 6Gb SAS	2	4	2	4	2	4
Onboard I/O: GbE	2	4	2	4	2	4

Notes
[1]16TB for Data ONTAP 8.3, 4TB for Data ONTAP 8.2 (cluster mode and 7-mode).
[2]1GbE optical and copper SFP support starts with the release of Data ONTAP 8.3.1RC
[3]FAS2552 and FAS2554 onboard UTA2 ports can be configured as either 8Gb/16Gb FC port pair or 10GbE/1GbE port pair and mixed combinations.
[4]FAS2520 onboard ports are 10GBASE-T only that can autorange to 1GbE.

Specifications for Scale-Out Configurations (Hybrid and Disk-Only Configurations)
	FAS2554	FAS2552	FAS2520
NAS/SAN Scale-out	1 nodes (4 HA pairs)		1 nodes (2 HA pairs)
Maximum Drives	576	576	168
Maximum Raw Capacity	3.5PB	3.0PB	1PB
Maximum Flash Pool	64TB	64TB	32TB
Maximum Memory	144GB	144GB	72GB
Cluster Interconnect	10GbE		10G Base-T
	FAS2554		FAS2552		FAS2520
Storage Protocols Supported	FAS2552 / FAS2554 = FC; FCoE; iSCSI; NFS; pNFS; CIFS/SMB
Storage Protocols Supported	FAS2520 = iSCSI; NFS; pNFS; CIFS/SMB
OS Version	Data ONTAP 8.2.2 or later
High-Availability Features	Alternate Control Path (ACP); thernet-based service processor and Data ONTAP management interface; redundant hot-swappable controllers, cooling fans, and power supplies
Supported Configurations	Cluster Configurations

	Single-node cluster
	Two-node switchless cluster
	Two-node switched cluster
	Clusters of HA pairs

	7-Mode Configurations
	Controllers:Single controller; active-active controllers in an HA pair; active-passive controllers in an HA pair

	Back-End Disks:Single path with single controller or HA pair; dual path with single controller MP-HA with HA pair (best practice)
Disk Shelves Supported	DS2246 (2U; 24 drives, 2.5" SFF)
	DS4246 (4U; 24 drives, 3.5" LFF)
	For complete details on expansion disk shelves and supported media in those shelves, refer to theNetApp Disk Shelves and Storage Mediaweb page.
Maximum RAID Group Sizes	RAID 6 (RAID-DP)

	SAS, SSD, and FC: 28 (26 data disks plus 2 parity disks)
	SATA: 20 (18 data disks plus 2 parity disks)

	RAID 4

	SAS, SSD, and FC: 14 (13 data disks plus 1 parity disk)
	SATA: 7 (6 data disks plus 1 parity disk)

	RAID 6 + RAID 1 or RAID 4 + RAID 1 (SyncMirror)
Host/Client Operating Systems Supported	Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux, Oracle Solaris, AIX, HP-UX, Mac OS, VMware, ESX
Max. Number of LUNs	2048 per controller
Number of Supported Hosts	Up to 6 ports per controller configured as front-end (host) connectivity ports
	Up to 12 directly connected servers per active-active configuration
	Connected hosts per HA pair: Up to 512 SAN connected servers

FlexVol Volumes	Up to 1,000 per controller
Snapshot Copies	Up to 255,000 per controller
Maximum Volume Size	60TB
Maximum Aggregate Size	120TB
System Environmental Specifications
	FAS2554	FAS2552	FAS2520
Thermal Rating	1,948 BTU (typical)	1,218 BTU (typical)	1,164 BTU (typical)
Thermal Rating	2,044 BTU (worst case)	1,737 BTU (worst case)	1,843 BTU (worst case)
Weight[1]	111.3 lbs	55.4 lbs	58.6 lbs
Height	7" (17.9 cm), fits into 4U space	3.35" (8.5 cm), fits into 2U space	3.45" (8.76 cm), fits into 2U space
Width	19" IEC rack-compliant (17.6", 44.7 cm)
Depth (without cable management brackets)	22" (56 cm)	19" (48 cm)	20" (50.8 cm)
Operating Temperature, Altitude, and Relative Humidity	50F to 104F (10C to 40C); at 3,000m (at 10,000') elevation; 20% to 80% relative humidity, noncondensing
Nonoperating Temperature and Relative Humidity	40F to 158F -40C to 70C; at 12,192m at E40,000' typical of unconditioned airplane cargo bay, 8% to 80% relative humidity, noncondensing, in original container
Operating Acoustic Noise	FAS2520:

	Declared sound power (LwAd) per ISO 9296: 6.2 Bel
	Sound pressure (LpAm) (bystander positions): 49.6 dB

	FAS2552:

	Declared sound power (LwAd) per ISO 9296: 6.2 Bel
	Sound pressure (LpAm) (bystander positions): 49.6 dB

	FAS2554:

	Declared sound power (LwAd) per ISO 9296: 6.1 Bel
	Sound pressure (LpAm) (bystander positions): 49.6 dB

Compliance	RoHS-compliant(PDF)
Safety/Emissions/Immunity	Safety:EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, CU, BIS, BSMI, SONCAP, NRCS LOA (South Africa)

	Emissions/Immunity:FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI

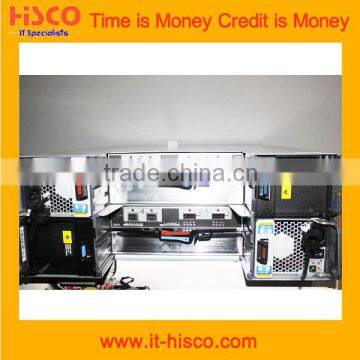

Picture Showcase

We take product photos freshly in warehouse.

Our Services

1. Reply within 3-5min, solving further questions within 12h. 7x12h online service.

2. 1-3yr warranty for different items. Supplying new replacement within 3 days after we receive the damaged item, 7x8h service.

3. Online normal technical support and service 7x12h, troubleshooting 5x9h Tec. Sup&Svi.
