Home > Products > NetApp > NetApp FAS Storage FAS8020

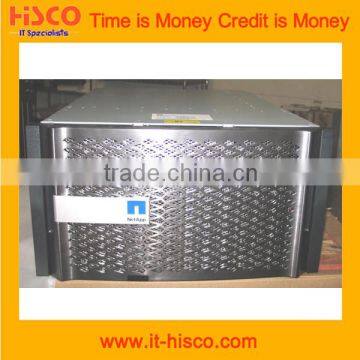

NetApp FAS Storage FAS8020

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Size	Other, 2.5'', 3.5''
Case Material	Aluminum	External Interface	Other, SAS, FC
Internal Interface	Other, SAS, FC	Brand Name	NetApp
Model Number	FAS8020	Place of Origin	Singapore

Product Description

Company Information

1. Integrator of HP.

2. Partner of Dell and NetApp.

3. Agent of IBM, EMC, Juniper and Qlogic.

4. Professional on handling and customizing projects and IT solutions.

5. Spirit of keeping long-term business relationship.

Product Description

Technical specifications for the NetApp FAS8000 Series unified scale-out storage

	FAS8020
NAS Scale-Out	1–24 nodes (12 HA pairs)
Maximum drives	5,760
Maximum capacity	34PB
Maximum Flash Pool™ capacity	288TB
Maximum memory	576GB
SAN Scale-Out	1–8 nodes (4 HA pairs)
Maximum drives	1,920
Maximum capacity	11.5PB
Maximum Flash Pool capacity	96TB
Maximum memory	192GB
Cluster interconnect	2 10GbE

Per HA Pair Specifications (Active-Active Dual Controller)

	FAS8020
Maximum capacity	2880TB
Maximum Flash Pool capacity	24TB
Maximum drives	480
Controller form factor	Single-enclosure HA; 2 controllers in single 3U chassis
Memory	48GB
Maximum Flash Cache™	3TB
Maximum Flash Pool	24TB
Combined flash total	24TB
NVRAM	8GB
PCIe expansion slots	4
Onboard I/O: UTA2 (10GbE/FCoE, 16Gb FC)	4
Onboard I/O: 10GbE	4
Onboard I/O: GbE	4
Onboard I/O: 6Gb SAS	4
Storage networking supported	FC; FCoE; iSCSI; NFS; pNFS; CIFS/SMB
OS version	Data ONTAP 8.2.1 RC2 or higher
High-availability features	Alternate Control Path (ACP); Ethernet-based service processor and Data ONTAP management interface; redundant hot-swappable controllers, cooling fans, power supplies, and optic
Supported configurations Data ONTAP 8.2.x	Clustered Data ONTAP configurations: Single-node cluster Two-node switchless or switched cluster Clusters of HA pairs 7-Mode configurations: Single controller Active-active controller with controller failover and multipath HA storage 7-Mode MetroCluster™ configurations: Active-active controller with stretch (non-switched storage) MetroCluster Active-active controller with fabric-attached (switched storage) MetroCluster
Supported configurations Data ONTAP 8.3	Clustered Data ONTAP configurations: Single-node cluster Two-node switchless or switched cluster Clusters of HA pairs MetroCluster Clustered Data ONTAP configurations: 2 x two-node switched or switchless clusters with fabric-attached (switched) storage; 4 nodes total: a 2-node active-active cluster at each site total)
Disk shelves supported
Maximum RAID group sizes	RAID 6 (RAID DP®): Performance disk: 28 (26 data disks plus 2 parity disks) Capacity disk: 20 (18 data disks plus 2 parity disks) RAID 4: Performance disk: 14 (13 data disks plus 1 parity disk) Capacity disk: 7 (6 data disks plus 1 parity disk) RAID 6 + RAID 1 or RAID 4 + RAID 1 (SyncMirror®)
Operating systems supported	Windows® 2000, Windows Server® 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux®, Oracle® Solaris, AIX, HP-UX, Mac® OS, VMware®, ESX®
Max. number of LUNs	8,192
Number of supported SAN hosts	Up to 512 hosts per HA pair Up to 24 directly connected servers per HA pair
FlexVol® volumes	Up to 1,000 per controller (clustered Data ONTAP); up to 500 per controller (7-Mode)
Snapshot® copies	Up to 255,000 per controller
Maximum volume size	70TB
Maximum aggregate size	324TB
Maximum Port Count (Includes Integrated Ports and PCIe Expansion Slots)
FC target ports (16Gb autoranging)	12
FC target ports (4Gb or 8Gb)	20
FCoE target ports, UTA (max.)	12
10GbE ports (max.)	16
GbE ports (max.)	20
6Gb/12Gb SAS ports (max.)	20
FC initiator ports (max.)	20
Maximum Adapters
Dual 10GbE (optical or copper)	4
Dual 10Gbase-T (RJ-45,CAT 6A-E)	4
Quad GbE (copper)	4
Dual 10GbE/FCoE 16Gb FC Unified Target Adapter 2 (UTA2, optical or copper for 10GbE/FCoE deployments, optical for 16Gb FC)	4
8Gb FC target	4
Flash Cache Performance Acceleration Module (2TB)	0
Flash Cache Performance Acceleration Module (1TB)	2
Flash Cache Performance Acceleration Module (512GB)	4
Quad 6Gb SAS storage HBA	4
Quad 12Gb SAS storage HBA	4
Quad 4Gb FC storage/tape HBA (fiber)	4

System Environmental Specifications

	FAS8020
Thermal Rating (at 200V)	1,205 BTU (typical) 1,450 BTU (worst case)
Weight (heaviest)	74.08lb.
Height	3U
Width	19" IEC rack-compliant (17.6", 44.7cm)
Depth	24.3" (28.9" with cable management)
Operating temperature, altitude, and relative humidity	10°C to 40°C (50°F to 104°F); at <= 3,000m (at <= 10,000') elevation; 20% to 80% relative humidity, noncondensing (28°C wet bulb temperature)
Nonoperating temperature and relative humidity	–40°C to 70°C (–40°F to 158°F); 5% to 95% relative humidity, noncondensing, in original container
Operating acoustic noise	FAS8020: Declared sound power (LwAd) per ISO 9296: 7.8 Bel Sound pressure (LpAm) (bystander positions): 62.6 dB FAS8040/FAS8060: Declared sound power (LwAd) per ISO 9296: 7.6 Bel Sound pressure (LpAm) (bystander positions): 62.4 dB FAS8080 EX: Declared sound power (LwAd) per ISO 9296: 7.5 Bel @ normal operating conditions (at 23°C and at sea level)
Compliance	RoHS-compliant (PDF)
Safety/emissions/immunity	Safety: EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, CU, BIS, BSMI, SONCAP, NRCS LOA (South Africa) Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI

NetApp Systems Cabinet

	FAS8020
Rack space	42U
Dimensions (height/width/depth)	78.75" (200cm)/23.6" (60cm)/44.3" (112.5cm)
Minimum cabinet clearances for airflow	10" (25.4cm) front and 12" (30.5cm) rear
Minimum cabinet clearances for service	30" (76.3cm) front and rear, 12" top
AC power	200 to 240VAC
Current	30A single-phase or 3-phase
Weight (empty)	307lb. (138kg)
Features	Split rear door with cable egress opening, reversible front door (left or right handed)
