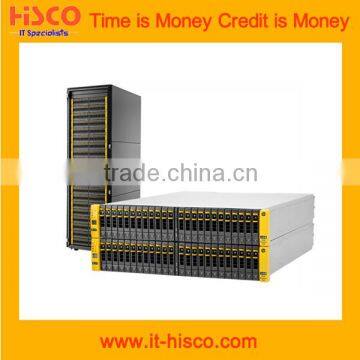

QR482A 3PAR StoreServ 7200 2-node Storage Base

Specifications

QR482A 3PAR StoreServ 7200 2-node Storage Base For hp

Product Description

Capacity
400TB Raw
Maximum supported capacity. Supported with 3PAR OS version 3.1.3 and later

Drive description
(24) SFF SAS
Expandable to 240 total SAS drives with M6710 and M6720 drive enclosures.

Drive type
100 GB 6G SFF SLC SAS Solid State Drive
200 GB 6G SFF SLC SAS Solid State Drive
100 GB 6G LFF SLC SAS Solid State Drive
200 GB 6G LFF SLC SAS Solid State Drive
300 GB 6G 15K SFF Dual-port ENT SAS
450 GB 6G 10K SFF Dual-port ENT SAS
900 GB 6G 10K SFF Dual-port ENT SAS
600 GB 6G 10K SFF Dual-port ENT SAS
2 TB 6G 7.2K LFF Dual-port MDL SAS
3 TB 3G 7.2K LFF Dual-port MDL SAS
1 TB 6G 7.2K SFF Dual-port MDL SAS
450 GB 6G 10K SFF Dual-port ENT Encrypted SAS
900 GB 6G 10K SFF Dual-port ENT Encrypted SAS
1 TB 6G 7.2K SFF Dual-port MDL Encrypted SAS
4 TB 6G 7.2K LFF Dual-port MDL SAS
400 GB 6G LFF MLC SAS Solid State Drive
400 GB 6G SFF MLC SAS Solid State Drive
400 GB 6G SFF MLC SAS Encrypted Solid State Drive
480 GB MLC SAS Solid State Drive
920 GB MLC SAS Solid State Drive
1.2 TB 6G 10K SFF Dual-port SAS

(240) Maximum supported, none included
Note: Up to 120 Solid State Disks per controller node pair. A data encryption license (LTU) is required to enable encryption on the array. There cannot be a mixture of encrypted drives and non-encrypted drives within the same array

Host interface
8 Gbc Fibre Channel (4) Ports

Included
Option to add (8) FC Ports or (4) 10 GbE iSCSI Ports

Availability features
Redundant power supplies and fans
A minimum of dual redundant controllers, with up to four controllers for added redundancy
RAID 1, RAID 5 and RAID 6 for data protection. The 4-node configuration provides cache persistence in the event of a controller failure.

Cache
24GB

What's included

Differentiator

3PAR StoreServ 7200 2-node 2U base enclosure with two controller nodes, 24 GB cache, four 8Gbc FC ports, two adapter slots, and 24 SFF drive bays.

Warranty - year(s) (parts/labor/onsite)
3/3/3

What's in the box
3PAR StoreServ 7200 2-node array, (4) 8Gb/s FC SFPs, rack mounting hardware, (2) power cords, (4) 2m SAS cables
