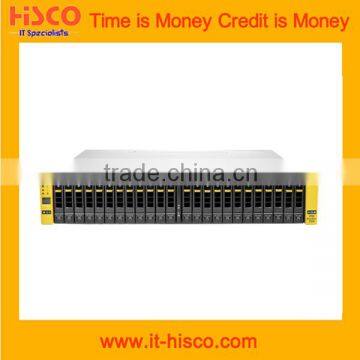

E7W50A 3PAR StoreServ 7400 2-node Storage Base for Storage Centric Rack

Specifications

E7W50A 3PAR StoreServ 7400 2-node Storage Base for Storage Centric Rack

Capacity

• 600TB Raw
• Maximum supported capacity. Supported with 3PAR OS version 3.1.3 and later

Drive description

• (24) SFF SAS
• Supported
• Expandable to 240 total SAS drives with M6710 and M6720 drive enclosures.

Drive type

• 100 GB 6G SFF SLC SAS Solid State Drive
• 200 GB 6G SFF SLC SAS Solid State Drive
• 100 GB 6G LFF SLC SAS Solid State Drive
• 200 GB 6G LFF SLC SAS Solid State Drive
• 300 GB 6G 15K SFF Dual-port ENT SAS
• 450 GB 6G 10K SFF Dual-port ENT SAS
• 900 GB 6G 10K SFF Dual-port ENT SAS
• 600 GB 6G 10K SFF Dual-port ENT SAS
• 2 TB 6G 7.2K LFF Dual-port MDL SAS
• 3 TB 3G 7.2K LFF Dual-port MDL SAS
• 1 TB 6G 7.2K SFF Dual-port MDL SAS
• 450 GB 6G 10K SFF Dual-port ENT Encrypted SAS
• 900 GB 6G 10K SFF Dual-port ENT Encrypted SAS
• 1 TB 6G 7.2K SFF Dual-port MDL Encrypted SAS
• 4 TB 6G 7.2K LFF Dual-port MDL SAS
• 400 GB 6G LFF MLC SAS Solid State Drive
• 400 GB 6G SFF MLC SAS Solid State Drive
• 400 GB 6G SFF MLC SAS Encrypted Solid State Drive
• 480 GB MLC SAS Solid State Drive
• 920 GB MLC SAS Solid State Drive
• 1.2 TB 6G 10K SFF Dual-port SAS
• 480 GB 6G SFF cMLC SAS Solid State Drive
• 1.92 TB 6G SFF cMLC SAS Solid State Drive
• (240) Maximum supported, none included
• Note: Up to 120 Solid State Disks per controller node pair. A data encryption license (LTU) is required to enable encryption on the array. There cannot be a mixture of encrypted drives and non-encrypted drives within the same array

Host interface

• 8 Gb Fibre Channel (4) Ports
• Included
• Option to add (8) FC ports or (4) 10 GbE iSCSI ports to the array.
• Kit also includes (2) 48-port (maximum per switch) 16 Gb/s FC switches, each switch has a base of (24) active FC ports.

Availability features

• Redundant power supplies and fans
• A minimum of dual redundant controllers, with up to four controllers for added redundancy
• RAID 1, RAID 5 and RAID 6 for data protection. The 4-node configuration provides cache persistence in the event of a controller failure.

Cache

• 24GB
