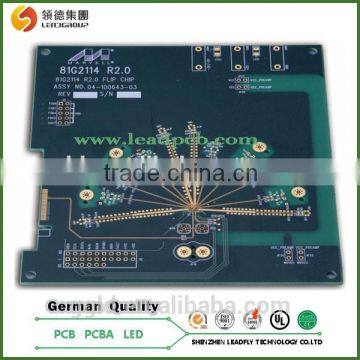

High Precision FR-4 circuit board design with new year price
- 10000 Square Meter / Square Meters per Month
- Shenzhen
- Credit Card
You May Like
-
High quality multilayer FR-4 pcb with new year price!
-
Customized high quality hot selling Multilayer pcb ,Professional manufacture in Shenzhen!
-
Factory price pcb substrate fr4 pcb ,professional manufacture in Shenzhen.
-
High Precision factory price Multilayer pcb substrate fr4 pcb,Professional manufacture in Shenzhen
-
High quality pcb substrate fr4 pcb with new year price!
-
High Precision Multilayer pcb substrate fr4 pcb with new year price
Product Details
| Place of Origin | Guangdong, China | Brand Name | LEAD | |
| Model Number | High Precision Multilayer Printed Circuit Board | Base Material | FR4 | |
| Copper Thickness | 0.5OZ~5OZ | Board Thickness | 0.2-5.0mm | |
| Min. Hole Size | 0.2mm | Min. Line Width | 0.1mm | |
| Min. Line Spacing | 0.1mm | Surface Finishing | HASL/OSP/Immersion Gold |
Product Description
High Precision FR-4 circuit board design with new year price
Multilayer PCB Specification:
Layer Counts | 1-12layers |
Product Categories: | single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes |
Main base material: | FR-1, FR-2, FR-4, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum |
Surface Finish: | lead free HASL, immersion gold/silver/tin, plating gold, OSP |
Board Thickness: | Inner core thickness 0.15-1.5mm, finished board thickness 0.20-5.0mm |
Copper Foil Thickness: | 0.5oz~5oz |
Min. hole size: | 0.2mm/8mil |
Min. line width: | 0.1mm/4mil |
Min. spacing: | 0.1mm/4mil |
Maximum Size: | 600mm x 10000mm |
Min. Size: | 5mm x 10mm |
Solder Mask Type: | Liquid photo-imageable, Thermosetting solder, UV solder mask |
Outline Tolerance: | ±0.13mm(r0. ±0.13mm(routing), ±0.05mm(punching) |
Inner Layer registration tolerance: | ±0.05mm |
Production capacity per month: | ≥10000sqm |
Profiling: | Punching, Routing, V-CUT, Beveling |
