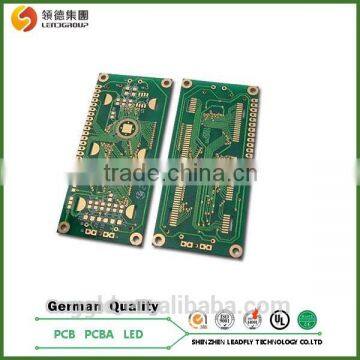

New technology innovative FR-4 pcb for led lighting,professional manufacture in Shenzhen.
- Shenzhen
- Credit Card
You May Like
-
Factory price multilayer FR-4 pcb prototype
-
Professional high quality hot selling fr-4 based led light circuit board
-
Factory price multilayer fr-4 based led light circuit board
-
Professional high quality hot selling FR-4 pcb for led lighting
-
High Precision FR-4 pcb for led lighting with new year price
-
Factory price multilayer FR-4 pcb ,professional manufacture in Shenzhen.
Product Details
| Place of Origin | Guangdong, China | Brand Name | LEAD | |
| Model Number | Mobile Phone PCB Board | Base Material | FR4 | |
| Copper Thickness | 1/3 OZ~6OZ (18um~210um) | Board Thickness | 0.2-5.0mm | |
| Min. Hole Size | 0.2mm | Min. Line Width | 0.1mm | |
| Min. Line Spacing | 0.1mm | Surface Finishing | ENIG |
Product Description
New technology innovative FR-4 pcb for led lighting,professional manufacture in Shenzhen.
Multilayer PCB Specification:
Layer Counts | 1-12layers |
Product Categories: | single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes |
Main base material: | FR-1, FR-2, FR-4, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum |
Surface Finish: | lead free HASL, immersion gold/silver/tin, plating gold, OSP |
Board Thickness: | Inner core thickness 0.15-1.5mm, finished board thickness 0.20-5.0mm |
Copper Foil Thickness: | 0.5oz~5oz (18um – 210um) |
Min. hole size: | 0.2mm/8mil |
Min. line width: | 0.1mm/4mil |
Min. spacing: | 0.1mm/4mil |
Maximum Size: | 600mm x 10000mm |
Min. Size: | 5mm x 10mm |
Solder Mask Type: | Liquid photo-imageable, Thermosetting solder, UV solder mask |
Outline Tolerance: | ±0.13mm(r0. ±0.13mm(routing), ±0.05mm(punching) |
Inner Layer registration tolerance: | ±0.05mm |
Production capacity per month: | ≥10000sqm |
Profiling: | Punching, Routing, V-CUT, Beveling |
