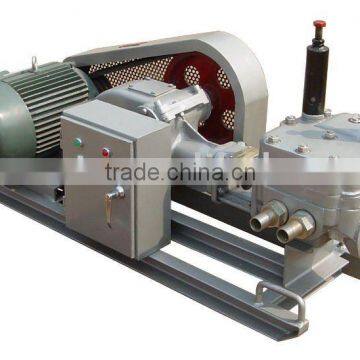

RG60/40 Mechanical Cement Grout Pump
Single cylinder, double action
V-belt & gear
Hot Sell Mechanical Cement Grout Pump

RG60/40 Mechanical Cement Grout Pump

The RISEN RG60/40 Mechanical Cement Grout Pump is a grouting pump with gear reducer, which is a universal medium-pressure grouting pump.

----The basic version is electric motor, and optional version is diesel engine.

Technical data:

Item	RG130-20	RG60-40
Work elements	single cylinder double action. spherical valve reversing	single cylinder double action. spherical valve reversing
Output	130 L/min	60 L/min
Pressure	2 Mpa(20bar/290psi)	4 Mpa(40bar/580psi)
Cylinder Dia	φ75 mm	φ75 mm
Piston stroke	85 mm	85 mm
Piston Speed	180 /min	85 /min
Inlet diameter	51 mm	38 mm
Outlet diameter	38 mm	32 mm
Power unit	5.5 kW(Electric) 10hp(Diesel)	5.5 kW(Electric) 10hp(Diesel)
Transmission	V-belts +gear case	V-belts +gear case
Chassis	Skid	Skid
Weight	260 kg	210 kg
Dimensions	1400×650×920 mm	1280×485×645 mm
Note: Single or Double Passageway.Skid or Tyre

Application:

Grouting either of single slurry and two different slurries in tunnels, slope, mines, bridge and all sorts of underground engineering etc.
Repairing engineering with grouting.

Features:

Single piston double-acting
Gear&vee belt transmission makes this pump high mechanical efficiency and working
reliability
Integrated valve house and ball valve, together with compact structure
Body of pump is made of aluminum casting,low weight is an advantage for transport
