Home > Products > grouting machine > Single Cylinder Piston Grout Pumps
Single Cylinder Piston Grout Pumps
- Tianjin shanghai qingdao port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | RISEN | |
| Model Number | RG130/20 Piston Grout Pump |
Product Description
Specifications
Single Cylinder Piston Grout Pumps1.Single cylinder, double action
2.Realiable
3.Compact structure
4.Aluminum casing
Single Cylinder Piston Grout Pumps
The RISEN RG130/20 Single cylinder double action pistion grout pump is a single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump.
----The basic version is electric motor, and optional version is diesel engine.
Technical data:
Item | RG130-20 | RG60-40 |
Work elements | single cylinder double action. spherical valve reversing | single cylinder double action. spherical valve reversing |
Output | 130 L/min | 60 L/min |
Pressure | 2 Mpa(20bar/290psi) | 4 Mpa(40bar/580psi) |
Cylinder Dia | φ75 mm | φ75 mm |
Piston stroke | 85 mm | 85 mm |
Piston Speed | 180 /min | 85 /min |
Inlet diameter | 51 mm | 38 mm |
Outlet diameter | 38 mm | 32 mm |
Power unit | 5.5 kW(Electric) 10hp(Diesel) | 5.5 kW(Electric) 10hp(Diesel) |
Transmission | V-belts +gear case | V-belts +gear case |
Chassis | Skid | Skid |
Weight | 260 kg | 210 kg |
Dimensions | 1400×650×920 mm | 1280×485×645 mm |
Note:Single or Double Passageway.Skid or Tyre | ||
Application:
- Grouting single slurry in tunnels, slope, mines, bridge and all sorts of underground engineering etc.;
- Repairing engineering with grouting.
Features:
- Single piston double-acting
- Gear&vee belt transmission makes this pump high mechanical efficiency and working
- reliability
- Integrated valve house and ball valve, together with compact structure
Body of pump is made of aluminum casting,low weight is an advantage for transport
Pictures:

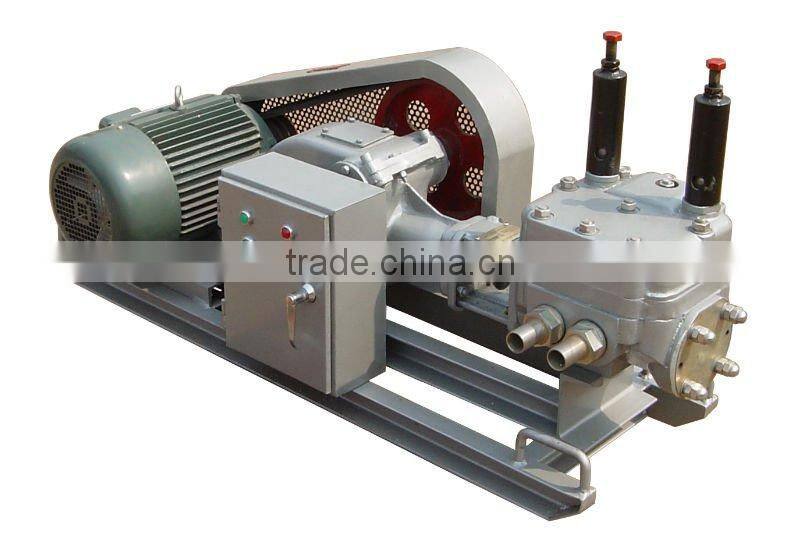

Electric drive

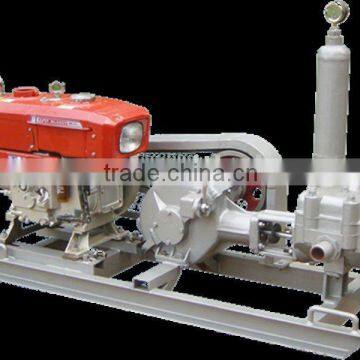

Diesel drive
