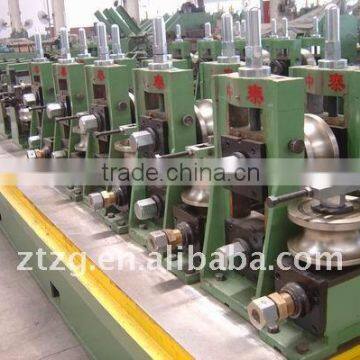

ERW76 tube mills
- 20 Set / Sets per Month
- Xingang
- T/T
You May Like
Product Details
| Type | Pipe Mill | Pipe Material | Carbon Steel | |
| Application | Energy Supply Pipe | Place of Origin | Hebei, China | |
| Brand Name | ZTZG | Model Number | ERW76 |
Product Description
Specifications
Product: ERW76 tube millsIt is designed to produce pipe of OD 32MM-76MM and corresponding rectangle and square tube.
Product: ERW76 tube mills
I. Summary
HG76 ERW tube mills is designed to produce welded pipes of 32mm-76mm in OD . After we absorbed advanced pipe making technology at home and abroad, our innovative production line and each single unit of the production line are not only economical but also practical.
II. Basic Technical Information:
1. Specification of pipes
Pipe OD: 32-76mm
Thickness: 0.6-3.0mm
Length: 6 -12m
2. Steel strip:
Material: low carbon steel, low alloy steel Q235B(ASTM GR·D,σs 230)
3. Pipe Length : 6-12m
Cutting Length Tolerance : ±3mm
Production Speed : 8-80 m/min
Direction : From left to right or decided by your side.
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →High-frequency induction welding→Removing inne& outsied Bead →Cooling→Sizing→Cutting off→ConveyingcDownloading → Packing →Warehousing
