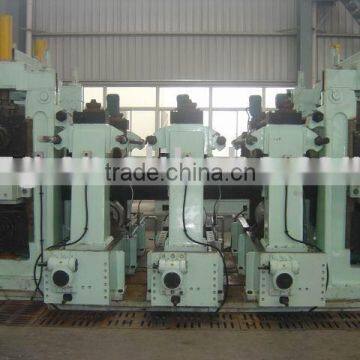

ERW 610 steel pipe making machine

Specifications

 Commodity:ERW 610 steel pipe making machine

I. Summary

HG 610 ERW pipe making machine is designed to produce welded pipes of Φ219mm-Φ610mm and6.0mm-19.0mm in wall thickness, as well as corresponding square (480mm×480mm) & rectangle (600mm×360mm) tubes. After we absorbed advanced pipe making technology home and abroad, our innovative production line and each single unit of the production line are not only economical but also practical. The complete production line adopts ZTF technology developed by our company when producing circle pipe. By means of ZTF technology, the customer shall reduce 60% expense on tooling and improve production effiency and create more economic benefit.

II. Basic Technical Information:

1. Production Specification

Circle Pipe OD:             219mm-610mm (8"-24")

Thickness:                 6.0-19.0mm

Max Square Tube:           480×480mm

Max Rectangle Tube         600×360mm

Max Length:                12 m

Length Tolerance:            ±3mm

2. Raw Material:              carbon steel strip b≤758Mpa, σs≤621 MPa

Steel Grade:                X70, J55, carbon steel ST37-ST52

3. Line Specifications

Forming Technology: ZTF Roll forming technology for circle pipe,

                     Roll circle pipe into square and rectangle tube

Max Production Speed:       40 m/min

Direction: From left to right or decided by your side.

 III. The technical flow of the production line

Coil Feeding→Uncoiling→Flattening→butt welding→Accumulating→Side Trimming→Forming→High-frequency induction welding→Removing outside & inner Bead →Polishing→Online UT → Seam Annealing→Cooling→Sizing→Cutting into length →Conveyer Table→Straightening→End Facing and beveling→Hydro Testing→Inspection→Packing→Warehouse
