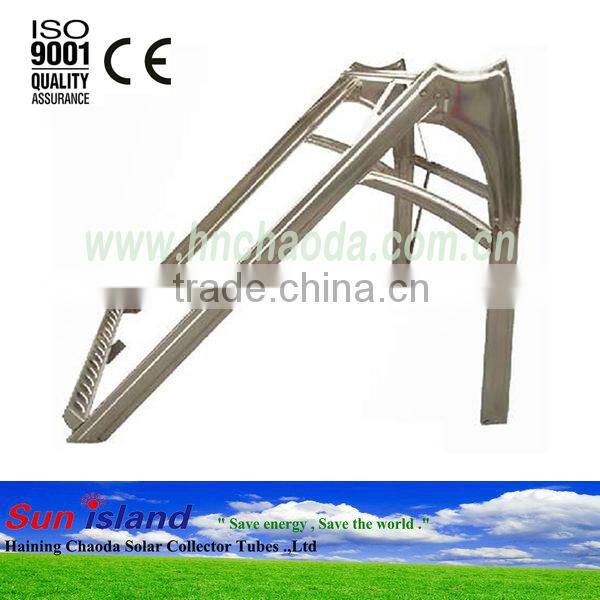

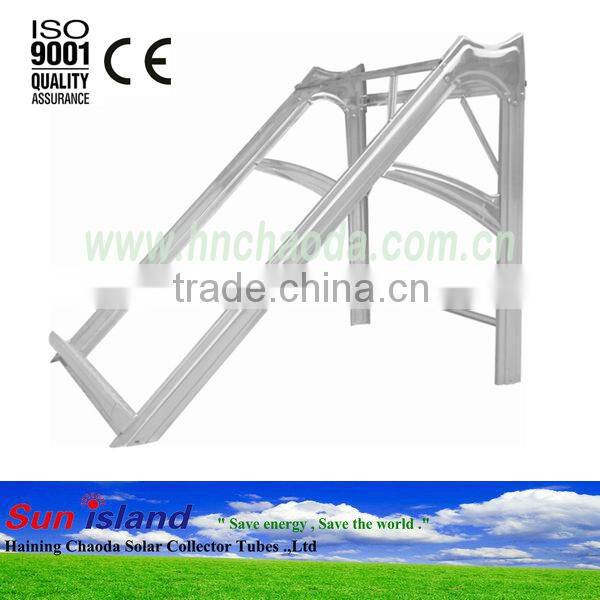

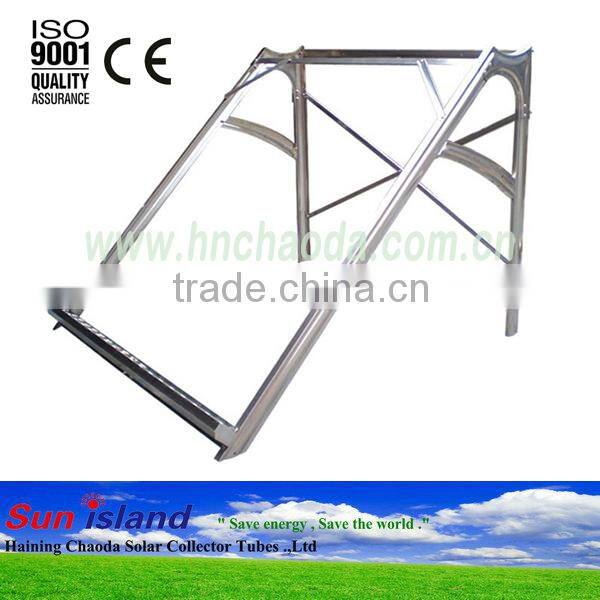

Stainless Steel Solar Water Heater Bracket

1. Solar water heater bracket encases the solar module.
2. Solar Bracket is bolted to the square or round pole for safety

3. Solar water heater bracket protects and completely encases the solar module.

4. Wires connecting the solar module are protected against weather and wind.

5. The frame has a stronger ability to resisting corrosion and snow.

6. Beautifully designed.

7. Quality assurance for ten years.

1.Suitable for low pressure and high pressure solar water heater

2. Materials: Stainless steel .

3. Size: Φ58-1800mm / Φ58-2000mm / Φ70-2100mm

4. Angle: 0°-70°

5. Bearing weight: 720kg

6. Color: As per customer's request.

7. Thickness: 1.0-1.2mm

8. Surface processing:static blasting painting,baking paint for metal

9. Package:Inner:plastic film or pearl wool outer:shrink film or as clients requests

10. Scope of application: solar water heater home series, solar water heating project series

Free instruction for installation and operation

Please reference the introduction of product and installation manual.

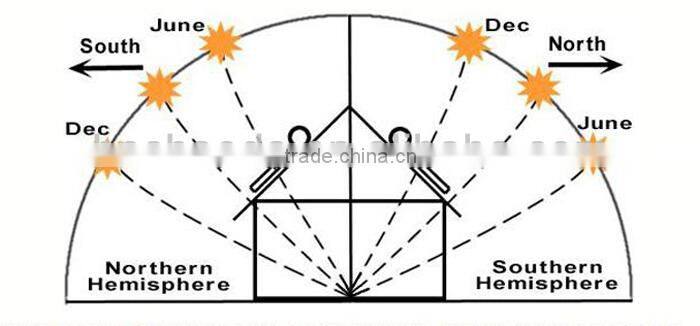

As can be seen by the diagram above, the sun is low in the sky during the winter and high in the summer.

So before enjoy hot water from the sun, consult your local plumber or contractor company to ensure a good installation.

We`d also be happy to recommend our partners in plumbing for your references.

Here I`d like to share you with some more installation site gallery regarding flat roof and tilt roof.
