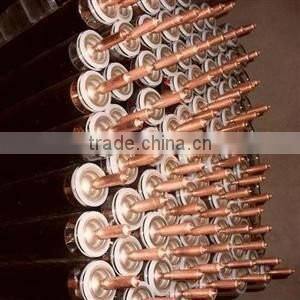

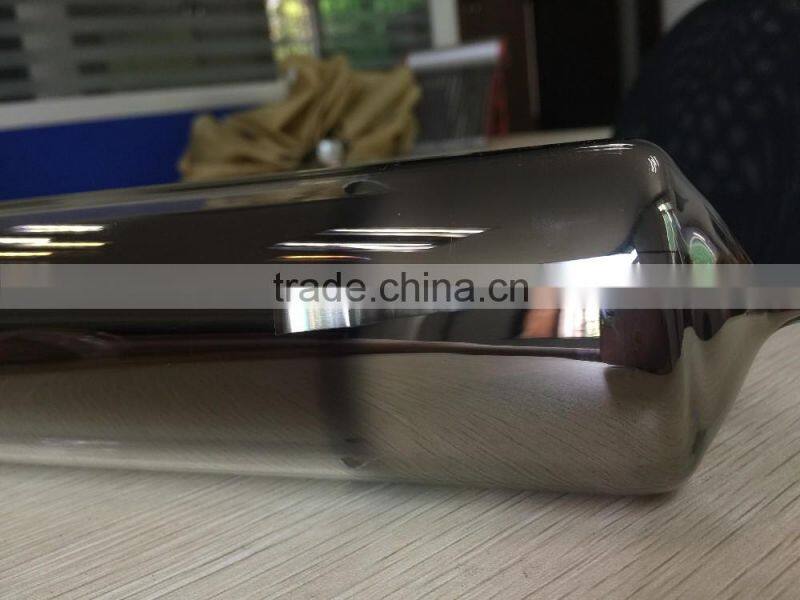

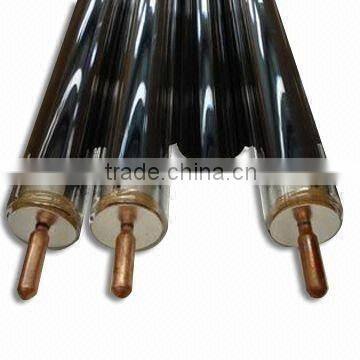

All Glass Sola Vacuum Tube(Heat Pipe)
US$ 1.4 - 2.1
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HAINING/OEM 58*1800MM SOLAR VACUUM TUBES
-
All Glass Solar Vacuum Tubes&heat Pipe Evacuated Tubes
-
Solar Vacuum Tube 47/1800mm 58/1800mm for Solar Water Heater
-
Haining Cheap Solar Vacumm Tube and Heat Pipe
-
Hot Sell&Solar Vacuum Tube With Heat Pipe
-
58mm/1800mm High Quality Three Target Solar Vacuum Tube
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chaoda/OEM | |
| Model Number | solar vacuum tube |
Product Description
Product Description
| Type | Tri-element | Normal (Blue) |
| Length | 1500mm/1800mm | 1500mm/1800mm |
| Outer Tube Diameter | 47mm/58mm | 47mm/58mm |
| Internal Tube Dia | 37mm | 37mm |
| Weight | 1.4kg/2.0kg | 1.4kg/2.0kg |
| Glass Thickness | 1.6mm/2mm | 1.6mm/2mm |
| Material | Borosilicate glass 3.3 | Borosilicate glass 3.3 |
| Absorptive Coating | Grade ALN/AIN-SS/CU | Grade ALN/AL |
| Vacuum degree | P≤5.0*10-3 Pa | P≤5.0*10-3 Pa |
| Thermal Expension | 3.3*10-6/ºC | 3.3*10-6/ºC |
| Insulation | >200ºC | >200ºC |
| Absorptance | >95% | >93% |
| Emittance | 4-6% | 5-7.5% |
| Heat loss | 0.4-0.6W/(m2 ºC) | 0.6-0.8W/(m2 ºC) |
| Maximum strength | 0.8Mpa | 0.8Mpa |
| Resist cold | -35ºC | -35ºC |
| Resist hailstone | Φ25mm | Φ25 |
Company Information

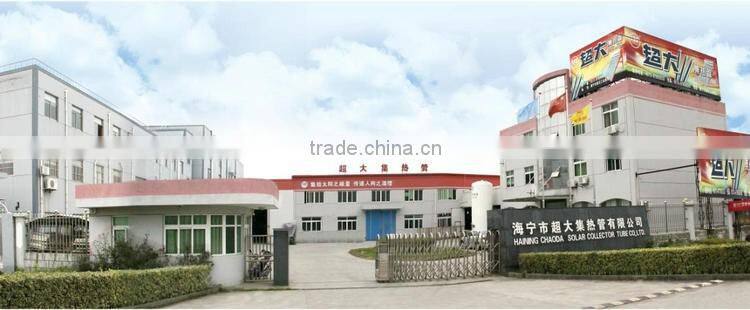

Founded in 2006 , Haining Chaoda Solar Collector Tubes Co.,Ltd is professional supplier for all kinds of solar water heater products .
We supply good price and high quality solar water heaters ,solar collectors ,solar vacuum tube ,solar water tank ,solar bracket ,solar PV panel ,solar air conditioner ,solar hot water project and other related accessory and fittings .
we has been in international solar bussiness for more than 10 years , exporting to Europe ,Canada , USA , Middle east ,Mexico , New zealand ,Iran ,South Africa and so on .
Our company has CE ,solar key mark ,ISO9001 certificates . We are honest to be your best supplier.
