3Jaw Wedge Style Pneumatic Power Lathe Chuck for Automatic CNC Lathe Machine
- 10202 Set / Sets per Month
- SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China customized standard machine tool accessories long jaw stroke power chuck
-
Hollow Three-Jaw Power Chuck
-
Wedge-Type Power Chucks
-
4 Jaw 15Inch Through-hole Power Lathe Chuck Manufacture for CNC Milling Service
-
2 jaw wedge style closed center pneumatic power chuck for CNC center machine
-
3 Jaw 18inch Hydraulic Lathe Power Chucks for Lathe Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DRAKE | |
| Model Number | QS3-15" | Power | Pneumatic | |
| Number of Jaws | 3 |
Product Description

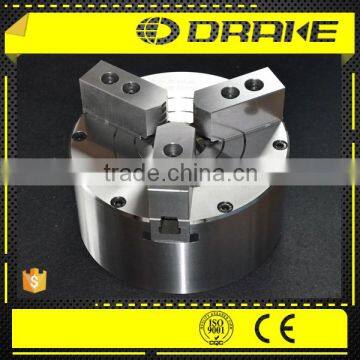

3Jaw Wedge Style Pneumatic Power Lathe Chuck for Automatic CNC Lathe Machine
machine tools accessorymachine tools accessorymachine tools accessorymachine tools accessorymachine tools accessory
Technical features:
1. This chuck suitable for clamping irregular shaped workpieces
2. This series of chuck comes with built-in cylinder structure, adopt the advanced alloy
steel material, all with the surface by surface hardening treatment, in order to
improve the accuracy and durability.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec. | D | D1 | D2 | H | H1 | h | P | z-d |
| QS3-04" | 115 | 72 | 100 | 96 | 72 | 3 | 16 | 3-M8 |
| QS3-05" | 145 | 95 | 108 | 118 | 85 | 4 | 18 | 3-M8 |
| QS3-06" | 180 | 130 | 142 | 130 | 93 | 4 | 20 | 3-M8 |
| QS3-08" | 208 | 165 | 180 | 136 | 100 | 5 | 25 | 3-M10 |
| QS3-10" | 252 | 206 | 226 | 143 | 102 | 5 | 30 | 3-M12 |
| QS3-12" | 322 | 270 | 290 | 160 | 115 | 6 | 30 | 6-M12 |
| QS3-15" | 400 | 340 | 368 | 168 | 118 | 6 | 43 | 6-M16 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
Model/Spec. | Jaw Stroke (Diameter) (mm) | Maximum static clamping force(kgf) | Maximum static holding force(kgf) |
Permissible pressure(mm) | Limit speed (r/min) | Clamping range | Holding range | Net weight (Kg) |
| QS3-04" | 3.2 | 2040 | 1170 | 0.4-0.8 | 4500 | 2-120 | 15-120 | 5.2 |
| QS3-05" | 3.7 | 2850 | 1830 | 0.4-0.8 | 4000 | 3-140 | 15-140 | 8 |
| QS3-06" | 4.2 | 4890 | 2650 | 0.4-0.8 | 3600 | 4-180 | 18-180 | 14 |
| QS3-08" | 5 | 7140 | 4280 | 0.4-0.8 | 3300 | 5-220 | 20-240 | 23 |
| QS3-10" | 6.5 | 9280 | 6120 | 0.4-0.8 | 3000 | 10-260 | 30-280 | 35 |
| QS3-12" | 8.5 | 14070 | 9480 | 0.4-0.8 | 2500 | 20-350 | 40-360 | 70 |
| QS3-15" | 12 | 19780 | 15000 | 0.4-0.8 | 2000 | 20-420 | 60-440 | 118 |
| No. | Name | No. | Name |
| 1 | Hose fitting M6 | 9 | cket head bolt |
| 2 | cket head bolt | 10 | Grease nipple |
| 3 | Body | 11 | Center fixed cap |
| 4 | O-type sealing ring | 12 | Center fixed cap connection screw |
| 5 | Cylinder O-type sealing ring | 13 | Soft jaw |
| 6 | Plunger | 14 | Soft jaw connection screw |
| 7 | Cover plate | 15 | Master jaw |
| 8 | Cover plate O-type sealing ring | 16 | Y-type sealing ring |
The matching products including:
1. Soft jaws.
2. Oil-water separator, manual solenoid valve.
3. Air hose, foot-switch, Hex. socket head bolt, axle sleeve.
4. Pneumatic controller.
