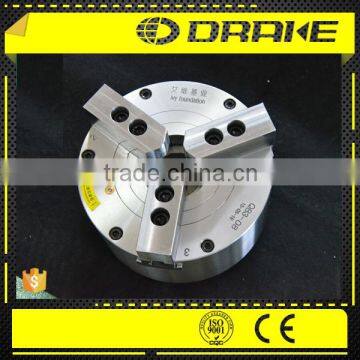

QB3 High Grade Alloy Steel 10inch Half Through-hole Pneumatic Power Chuck
- SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4 jaw power chuck lathe soft jaws for metal drawing cnc lathe machinery
-
QB3 High Grade Alloy Steel 12inch Half Through-hole Pneumatic Power Chuck
-
4 jaw power hydraulic lathe chuck for cnc woodworking machine
-
Type 4 jaw Standard 10inch Hollow Wedge Hydraulic Power Chucks for edge banding machine
-
Lathe Power Chuck 4 jaw used for CNC Production Surface and Form Grinder
-
Type 3 Jaw 15 Inch Stationary Thru-hole Dynamic Hydraulic Power Chuck
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DRAKE | |
| Model Number | QB3-10" | Power | Pneumatic | |
| Number of Jaws | 3 |
Product Description
QB3 High Grade Alloy Steel 10inch Half Through-hole Pneumatic Power Chuck
Technical features:
1. The chuck is a built-in cylinder, and it is stepped up and released through the air
pressure control mechanism at the spindle rear.
2. The chuck center is half-through-hole form, and the chuck is suitable for processing
long-shaft parts.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec. | D | D1 | D2 | H | H1 | h | P | z-d |
| QB3-05" | 135 | 95 | 108 | 103 | 85 | 4 | 16 | 3-M8 |
| QB3-06" | 172 | 130 | 142 | 127 | 96 | 4 | 20 | 3-M8 |
| QB3-08" | 212 | 165 | 180 | 138 | 100 | 5 | 25 | 3-M10 |
| QB3-10" | 252 | 206 | 226 | 144 | 102 | 5 | 30 | 3-M10 |
| QB3-12" | 325 | 270 | 290 | 175 | 123 | 6 | 32 | 6-M12 |
| QB3-15" | 400 | 340 | 368 | 210 | 138 | 6 | 43 | 6-M16 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
Model/Spec. | Jaw Stroke (Diameter) (mm) | Maximum static clamping force(kgf) | Maximum static holding force(kgf) | Permissible pressure(mm) | Limit speed (r/min) | Clamping range | Holding range | Net weight (Kg) |
| QB3-05" | 3.7 | 2549 | 1630 | 0.4-0.8 | 4000 | 3-140 | 15-140 | 8 |
| QB3-06" | 4.2 | 4314 | 2397 | 0.4-0.8 | 3600 | 4-170 | 18-180 | 14 |
| QB3-08" | 5 | 3675 | 3630 | 0.4-0.8 | 3200 | 5-210 | 20-240 | 23 |
| QB3-10" | 6.5 | 7650 | 4029 | 0.4-0.8 | 2800 | 10-260 | 30-280 | 35 |
| QB3-12" | 8.5 | 13056 | 7446 | 0.4-0.8 | 2300 | 10-350 | 40-360 | 70 |
| QB3-15" | 12 | 17850 | 9996 | 0.4-0.8 | 1500 | 15-420 | 60-440 | 118 |
The matching products including:
1. soft jaws.
2. Oil-water separator, manual solenoid valve.
3. Air hose, manual-switch, Hex. socket head bolt, axle sleeve.
4. Pneumatic controller
