50W solar panel with CE certificates, in stock now

FOB Price

US$ 0.69 - 0.85 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Adopt grade A raw material
2. Long warranty for 10 years
3, in stock now, fast delivery

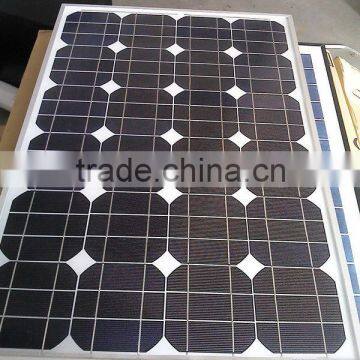

50W Mono solar panel , in stock now, fast delivery, welcome to talk details!!!

Electrical Data
MONO	PWM-50W	PWM-55W	PWM-60W
Nominal peak power(Pmax)	50Wp	55Wp	60Wp
Maximum power voltage(Vmp)	16.4V	17.0A	18A
Maximum power current(Imp)	3.05A	3.24A	3.34A
Short-circuit current(Isc)	3.32A	3.42A	3.59A
Open circuit voltage(Voc)	20.8V	21.4V	22V
Optimized cell efficiency(η)	14.80%	16.20%	17.80%
Power tolerance: ±3%

Limits
Operating temperature	-40°C to +85°C
Maximum system voltage	1000VDC

Temperature and Coefficients
NOCT	48°C±2°C
Current temperature coefficient	%/°C	0.037
Voltage temperature coefficient	%/°C	-0.34
Power temperature coefficient	%/°C	-0.48
NOCT:Nominal Operation Cell Temperature

Additional Data
Number of cells and type of connection	24,serial connection
Dimensions	Length:830mm Width:550mm Height:35mm
Net weight	5.5kgs/pc
Gross weight	12kgs/ctn(2pcs/ctn)
Package dimension	848X580X85mm
Container loading	1800PCS/40’HQ 2PCS/CTN 1584PCS/40’GP 2PCS/CTN 792PCS/20’GP 2PCS/CTN
STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C

Guaranteed Power Output Warranted Tolerance: ±5%	15 year:90% of its nominal power rating
Guaranteed Power Output Warranted Tolerance: ±5%	25 year:80% of its nominal power rating
Impact Resistance	Can bear the force that is generated by one 227g
Impact Resistance	steel ball fall down from 1m height
Warranty period	10 years:Materials and workmanship defects
Certificates	CE,ISO/UKAS,RoHS
Cells	Monocrystalline silicon photovoltaic cell
