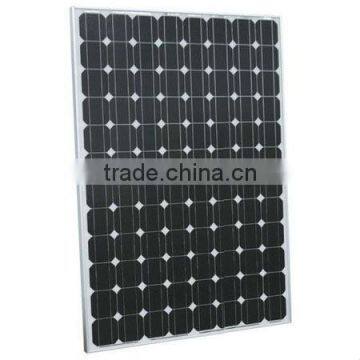

100W-250W Solar Panel&Solar Module
USD $0.69 - $0.85
/ Pair
2 Pairs(Min.Order)
- 10000 Piece / Pieces per Month
- Foshan guangzhou shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Greentechy | |
| Model Number | 50WP-290WP | Material | Monocrystalline Silicon | |
| Number of Cells | 36,72,96 | Max. Power | 50WP-290WP |
Product Description
Specifications
1. High efficiency,low cost2. Adopt grade A raw material
3. Long warranty for 10years
Renewable energy is energy that comes from natural sources that are almost always available, such as sunlight, wind, rain, tides, and even heat. Since creating environmentally-friendly energy solutions is crucial, the renewable energy industry has become a key business that will only increase in importance in future years and decades.Solar energy is often regarded as the most efficient renewable energy source for generating electricity.
| Electrical Data | |||
| MONO | 190W | 195W | 200W |
| Nominal peak power(Pmax) | 190Wp | 195Wp | 200Wp |
| Maximum power voltage(Vmp) | 36.7V | 37.0V | 37.4V |
| Maximum power current(Imp) | 5.19A | 5.27A | 5.35A |
| Short-circuit current(Isc) | 5.56A | 5.63A | 5.68A |
| Open circuit voltage(Voc) | 44.8V | 45.2V | 45.5V |
| Optimized cell efficiency(η) | 17.60% | 18.20% | 18.60% |
| Power tolerance: ±3% | |||
| Limits | |||
| Operating temperature | -40°C to +85°C | ||
| Maximum system voltage | 1000VDC | ||
| Temperature and Coefficients | |||
| NOCT | 48°C±2°C | ||
| Current temperature coefficient | %/°C | 0.037 | |
| Voltage temperature coefficient | %/°C | -0.34 | |
| Power temperature coefficient | %/°C | -0.48 | |
| NOCT:Nominal Operation Cell Temperature | |||
| Additional Data | |||
| Number of cells and type of connection | 72,serial connection | ||
| Dimensions | Length:1580mm Width:808mm Height:35mm | ||
| Net weight | 14.80kgs/pc | ||
| Gross weight | 450kgs/ctn(28pcs/ctn) 33kgs/ctn(2pcs/ctn) | ||
| Package dimension | 1635x1140x956mm 1598x838x88mm | ||
| Container loading | 868PCS/40’GP 62PCS/PALLET 372PCS/20’GP 62PCS/PALLET | ||
| STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C | |||
| Guaranteed Power Output Warranted Tolerance: ±5% | 15 year:90% of its nominal power rating | ||
| 25 year:80% of its nominal power rating | |||
| Impact Resistance | Can bear the force that is generated by one 227g | ||
| steel ball fall down from 1m height | |||
| Warranty period | 10 years:Materials and workmanship defects | ||
| Certificates | CE,ISO,IEC61215&61730(TUV),UL1703/CSA,MCS | ||
| Cells | Monocrystalline silicon photovoltaic cell | ||
