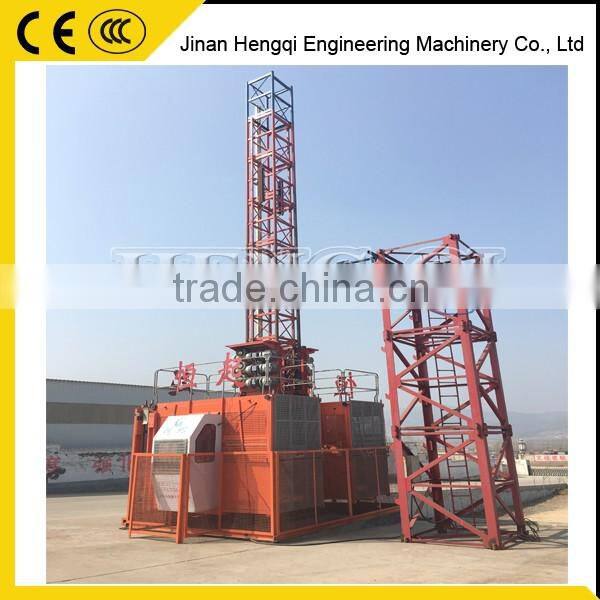

Construction Hoist ,passenger Hoist,construction/ Building

Product details

   Construction hoist is widely used in the vertical transportation of personnels and materials. It ‘s a good indispensable transportation equipment in the area of industrial and civil buildings, bridges, large shaft.As a permanent or semi permanent, it can also be used for different occasions such as warehouse, tower and so on. Compared with the other lifting mechanism the product is stable, safe and reliable, without additional room.It has the advantages of convenient assembly and disassembly, handling flexibility strong advantages, especially in reducing the construction personnel's labor intensity, speed up the project progress, improve the work efficiency.

Main Features

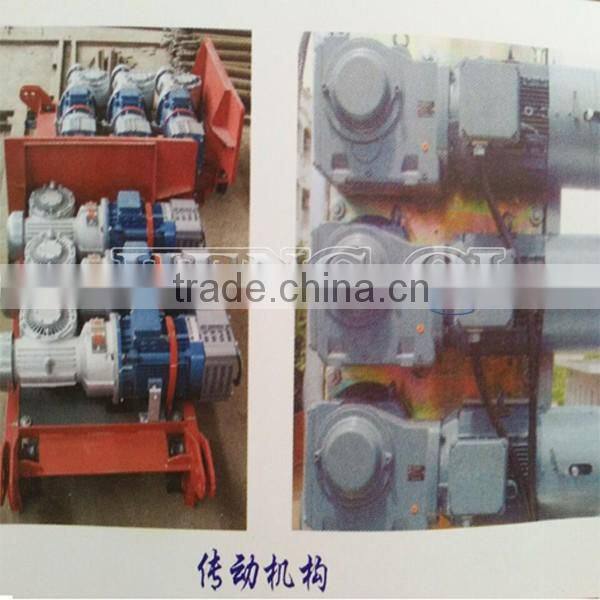

1, the driving mechanism adopts three motor drive form, so that the gear rack is uniform, safe and stable.
2, to ensure the safe operation of the elevator, the circuit set the overload, speed limit and other safety switches, when the operation occurs in the above case, the elevator automatically to avoid accident. The door of the hanging cage is also limited to a switch, and when any door is opened, the suspension cage can not start or stop running immediately.
3, each cage is equipped with anti falling safety device, can effectively prevent cage falling, to ensure safe and reliable operation of the elevator.
4, elevator control system circuit is simple, easy to operate and maintenance, and reliable. During normal operation of the elevator, the hanging cage with a handle or a button control elevator operation, in any parking position can be stopped at any time, in the upper and lower terminal station, the upper and lower terminal limit switch control automatic parking, if the terminal limit switch for fault does not play a role, the lifter is provided the limit switches can be promptly cut off the power supply of the brake.
5, the steel structure design through scientific and rigorous calculation, achieve reasonable structure, reliable strength, light weight requirement.
6, the elevator can use the cage on the hanger to install or remove the guide frame. Convenient installation and disassembly of each part can be the rest of the parts can be easily replaced.

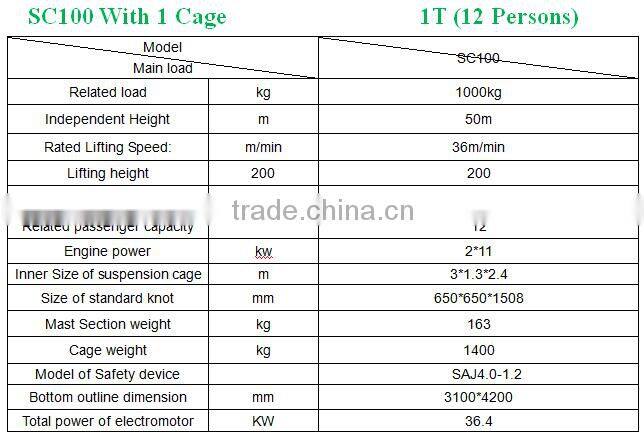

SC100     1T

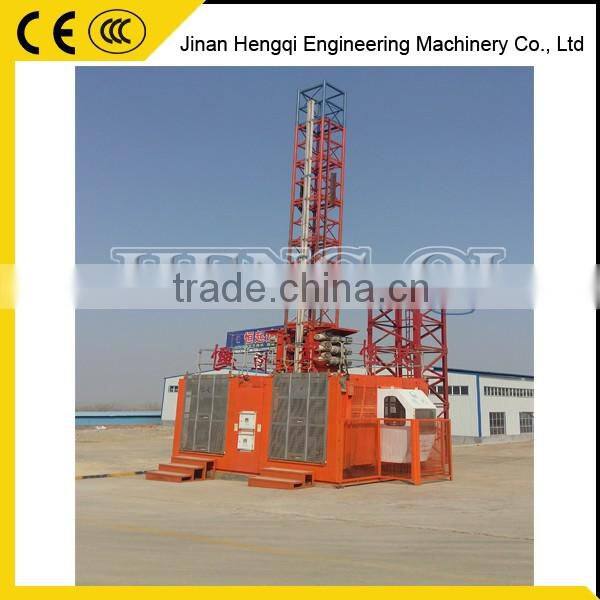

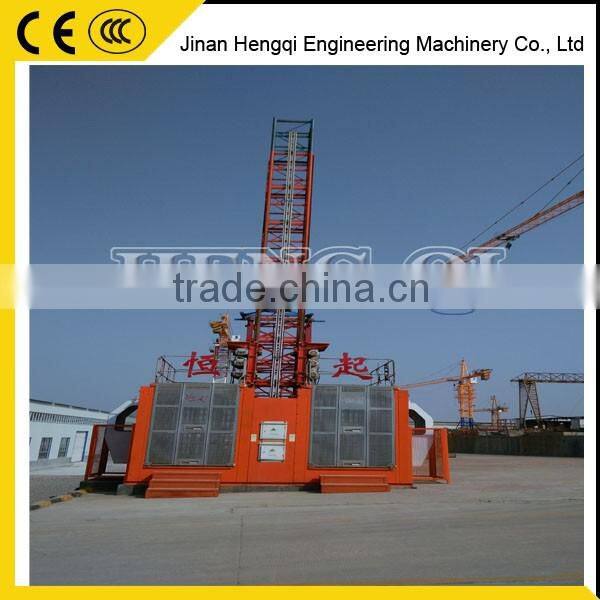

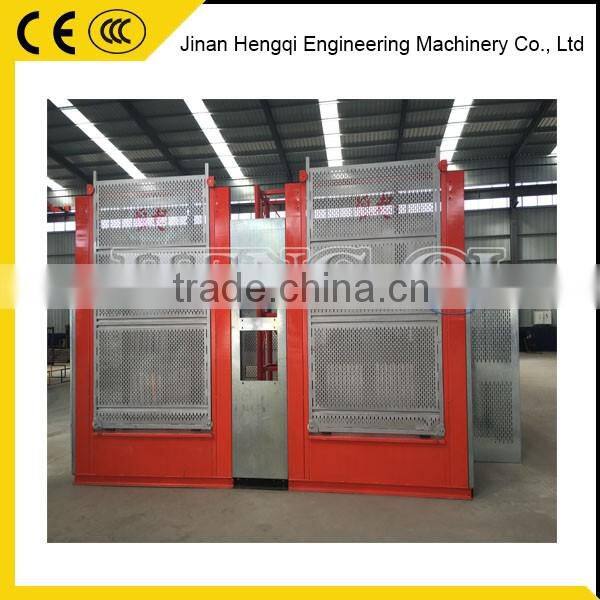

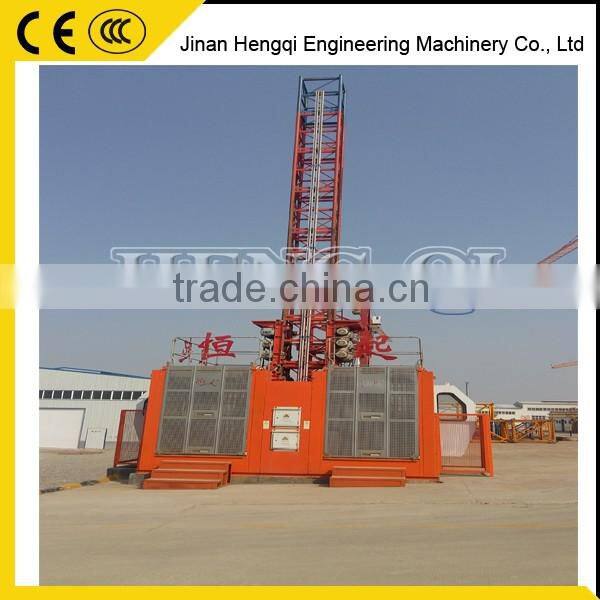

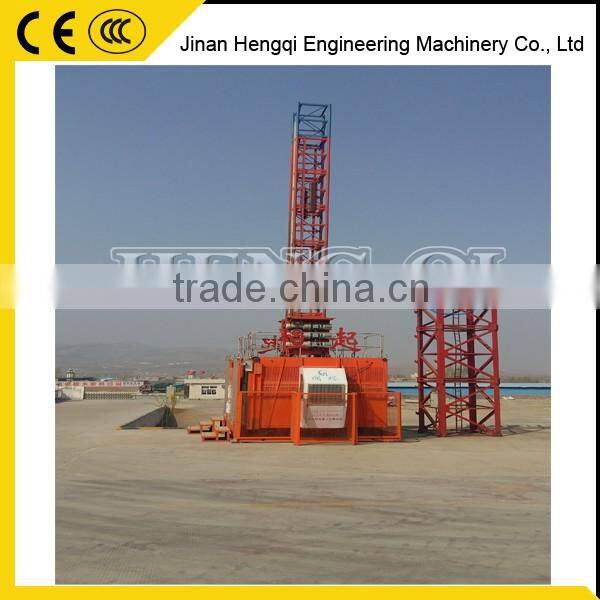

Product pictures

spare parts

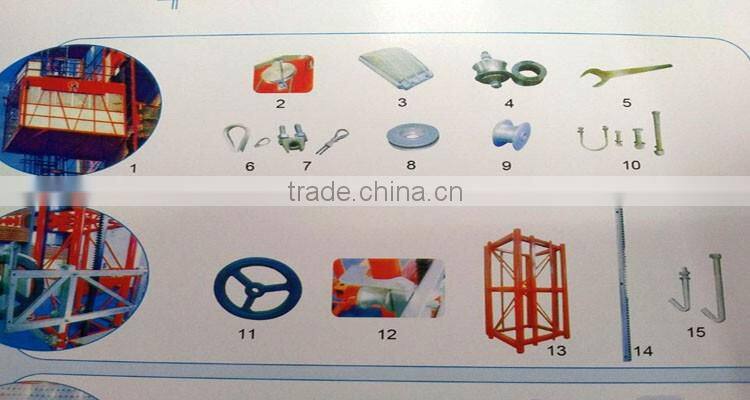

1- cage 2-rope pulley 3-lamp 4-roller 5-roller spanner 6-cable joint

7-cable joint 8-gate roller lower 9-gaterroller upper 10-screw 11-nylon wheel

12-protect hook 13-mast section 14-rack 15-“J”screw

spare parts

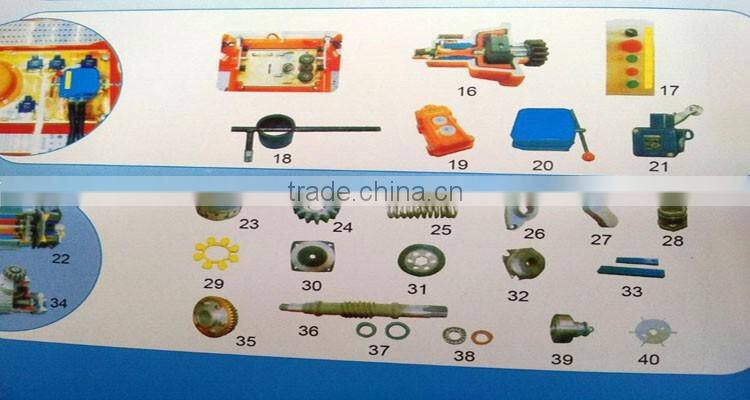

16-safety device 17-out operate box 18-safety device spanner 19-drop test operate box 20-3 phase switch 21-limint switch 22-motor 23-coupling

24-pinion 25-spring 26-adjustment unit 27-brake pad 28-jacket 29-rubber

30-brake disc 31-brake piece 32-electromagnet 33-rubber pad 34-reducing device 35-worm wheel 36-worm 37-oil seal 38-bearing 39-counter roller

40-worm gear fan

spare parts

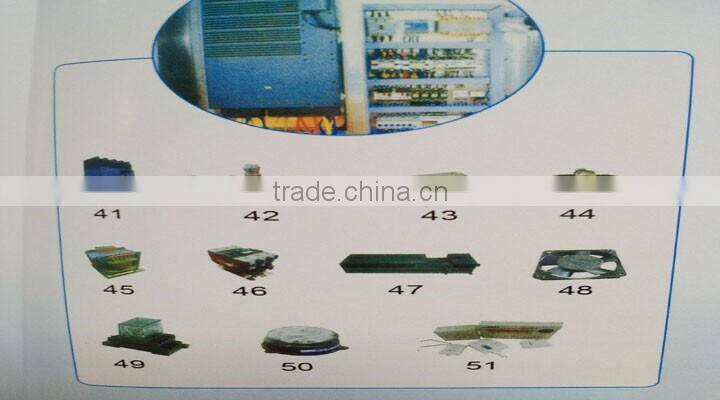

  41-creepage switch 42-overload 43-brake unit 44-drop test   plug 45-transformer 46-contactor 47-PLC module 48-fan       49-thermal relay 50-belling 51-calling system

spare parts

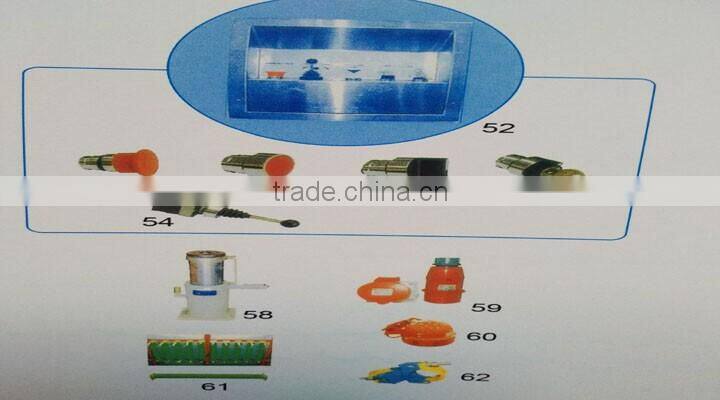

52-master controller 53-emergency stop button 54-hander switch 55-bell switch 56-lamp switch 57-EL.lock 58-Hydraulic spring 59-water proof plug 60-annunciator 61-resistance 62-pipe joint

Delivery and package

Delivery:within 10-15 days after receiving advance payment.
Package:Standard export package.

Before sale

Pls tell me your requirments such as the building height,max load,lift height,span,other specials you want.We will provide you with suitable model according to your request.If have any questions,our technician will help you solve.

On sale

Free of charge to accompany clients to inspect machines,to assist in the development of construction plan,to pack machine and delivery as well as assist customers to formulate the installation schedule.

After sale

1）- One year warranty for the machines.
2）- Offer free quick-wear accessories.
3） Low charge for continue maintenance when warranty is expired.
4）- Exclusive engineer support at any time.
5）Provide free training to end-users.

FAQ

1. What’s the information should I provide when inquiry?
A: Lift capacity
B: span
C: lift height
D: power sourceor other specials you give us will be more appreciated.
2. How long is your warranty?
Our warranty is 12 months after receiving the goods.
3.Usage period
About 30 years under common use.
4. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
5. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.

If you want to buy the SC100 1T construction hoist With 1cage And Good Price, please feel free to contact:
