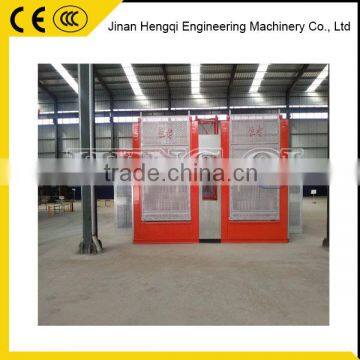

HENGQI construction hoist SC100/100

Product details

   Construction hoist is widely used in the vertical transportation of personnels and materials. It ‘s a good indispensable transportation equipment in the area of industrial and civil buildings, bridges, large shaft.As a permanent or semi permanent, it can also be used for different occasions such as warehouse, tower and so on. Compared with the other lifting mechanism the product is stable, safe and reliable, without additional room.It has the advantages of convenient assembly and disassembly, handling flexibility strong advantages, especially in reducing the construction personnel's labor intensity, speed up the project progress, improve the work efficiency.

Features of SC100/100 Construction hoist

1. It is equipped with fully safety devices to guarantee the safe working;
2. Stable running and comfortable adaptability;
3. The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;
4. Simple electrical control system, easy operation and convenient maintenance withlow failure rate.

 Advantages of Our SC100/100 Construction Hoist

1.Low operating cost but high efficiency;
2.Simplicity in operation;
3.High degree of safety;
4.Long durability;
5. Low energy consumption.
6. CE, ISO and GOST certificates.

SC100/100    2T

Product pictures

spare parts

1- cage 2-rope pulley 3-lamp 4-roller 5-roller spanner 6-cable joint

7-cable joint 8-gate roller lower 9-gaterroller upper 10-screw 11-nylon wheel

12-protect hook 13-mast section 14-rack 15-“J”screw

spare parts

16-safety device 17-out operate box 18-safety device spanner 19-drop test operate box 20-3 phase switch 21-limint switch 22-motor 23-coupling

24-pinion 25-spring 26-adjustment unit 27-brake pad 28-jacket 29-rubber

30-brake disc 31-brake piece 32-electromagnet 33-rubber pad 34-reducing device 35-worm wheel 36-worm 37-oil seal 38-bearing 39-counter roller

40-worm gear fan

spare parts

  41-creepage switch 42-overload 43-brake unit 44-drop test   plug 45-transformer 46-contactor 47-PLC module 48-fan       49-thermal relay 50-belling 51-calling system

spare parts

52-master controller 53-emergency stop button 54-hander switch 55-bell switch 56-lamp switch 57-EL.lock 58-Hydraulic spring 59-water proof plug 60-annunciator 61-resistance 62-pipe joint

Cage

Delivery and package

Delivery:within 10-15 days after receiving advance payment.
Package:Standard export package.

Before sale

Pls tell me your requirments such as the building height,max load,lift height,span,other specials you want.We will provide you with suitable model according to your request.If have any questions,our technician will help you solve.

On sale

Free of charge to accompany clients to inspect machines,to assist in the development of construction plan,to pack machine and delivery as well as assist customers to formulate the installation schedule.

After sale

1）- One year warranty for the machines.
2）- Offer free quick-wear accessories.
3） Low charge for continue maintenance when warranty is expired.
4）- Exclusive engineer support at any time.
5）Provide free training to end-users.

FAQ

1. What’s the information should I provide when inquiry?
A: Lift capacity
B: span
C: lift height
D: power sourceor other specials you give us will be more appreciated.
2. How long is your warranty?
Our warranty is 12 months after receiving the goods.
3.Usage period
About 30 years under common use.
4. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
5. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.

If you want to buy the SC100/100 2T construction hoist With 2cage And Good Price, please feel free to contact:

Contact person:Fanny Sun
Email:Towercrane02(at)
Skype:tonytowercrane02
Company:Jinan Hengqi Engineering Machinery Co.,Ltd
