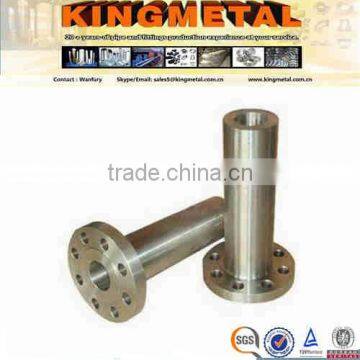

ASTM A182 F51 2" Duplex Stainless Long Welded Neck Flange

FOB Price

US$ 1 - 30 / Piece

1 Piece(Min. Order)

Port CHINA MAINPORT
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Size	1/2"-61"(DN15MM-1600MM), 1/2"-61"(DN15MM-1600MM)	Material	Stainless Steel
Standard	Other, ANSI , GB ,JIS ,DIN,JOST	Place of Origin	Hebei, China
Model Number	welded neck flange	Brand Name	kingmetal
Standard or Nonstandard	Standard

Product Description

high neck flange

FLANGE DETAILS

Flange Size: 1/2"-72"

Specification and Grades
. ANSI B16.5, ANSI B16.47 Ser. A (MSS SP-44),
. ANSI B16.47 Ser. B (API 605), API 6A/6BX
. ASTM/ASME A/SA 105N
. ASTM/ASME A/SA 350 LF2 CL 1/2
. ASTM/ASME A/SA 694 F52
. ASTM/ASME A/SA 516 Gr. 65/70
.ASTM/ASME A/SA 182 F304L, F316/316L
.NACE MR-0175

Product Offering
. Weld neck, Slip On, Socket weld, Threaded,
.Blind, Orifice Flanges, Spades, Spacers & Spectacle
.1/8" to 36"Size
. Schedule walls including 160 and XXS
. FF, RF AND RTJ Facings
. 150, 300, 600, 900, 1500 & 2500 pressure rating Class

Special flange
. Long Weld Neck / Nozzle Flanges
. Anchor Flanges

Standard: ANSI B16.5, B16.47, MSS SP-44, DIN2627, BS4504, JIS, etc

Pressure:
ANSI 150LBS-2500LBS,
DIN PN6-PN160,
JIS 5K-30K,
HG PN0.25-PN25, PN2.0-PN42.0

Flange Type:
Slip-on, Weld Neck, Socking Welding, Blind, Plate-type etc.

PL Flange

WN Flange

SO Flange

TH Flange

SW Flange

LJ Flange

BL Flange

Sealing Surface Type:
Raised Face, Full Face, Male&Female, Ring Joint Face, Taper Face, Taper Groove Face

Face type

RF(raised face)    M(male face)
FM(female face)      T(tongue face)
G(groove face)       RJ(ring joint face)etc.

Surface Treatment:
Rust-proof Oil, Varnish coated, Black/Yellow Painted, Galvanized

Steel Flange
Flange Material	Carbon steel	ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
		P250GH, P280GHM 16MN, 20MN ,20#
	Stainless steel	ASTM A182, F304/304L, F316/316L
	Alloy steel	ASTM A182 A182 F12,F11,F22,F5,F9,F91etc.
Flange Standard	ANSI	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar
	JIS	5K Flanges-20K Flanges
	UNI	6Bar 10Bar 16Bar 25Bar 40Bar
	EN	6Bar 10Bar 16Bar 25Bar 40Bar
Flange TYPE	1.Welding neck Flange, 2.Slip on
	3.Blind flange 4.Long welding neck flange
	5.Lap joint flange 6.Socket welding
	7.Threaded flange 8.Flat flange
Flange Surface	Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer, hot-dipped Galvanized, electrical galvanized
Connection	Welding, Threaded
Technical	Forged, Casting
Flange Size	DN10-DN3600
Flange Package	1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements
Flange Heat Treatment	Normalizing, Annealing, Quenching+Tempering
Flange Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry, and general pipes connecting projects etc.
