Spacer Spade Blind Spectacle Blind Figure 8 Blind Flange
US$ 1 - 500
/ Piece
20 Pieces(Min. Order)
- China Main Port
- T/T
You May Like
-
ANSI Class 150 Forged Carbon Steel Flange
-
ASME SB 564 Nickel Alloy Steel Flange
-
ASTM A182 304 Stainless Steel 150#/300# RF 48" Inch Threaded Flange DN 1200
-
ASTM A182 304 Stainless Steel 150#/300# RF 36" Inch Threaded Flange DN 900
-
ASTM A182 304 Stainless Steel 150#/300# RF 32" Inch Threaded Flange DN 800
-
ASTM A182 304 Stainless Steel 150#/300# RF 28" Inch Threaded Flange DN 700
Product Details
| Material | Other, Carbon/Stainless/Alloy Steel | Standard | Other, ANSI, DIN, JIS, GOST, BSW, etc. | |
| Place of Origin | China | Model Number | KM-03 | |
| Standard or Nonstandard | Standard |
Product Description

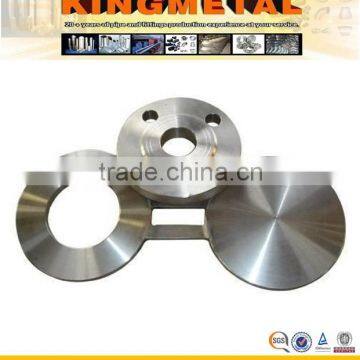

Spacer Blind Spectacle Blind Figure 8 Blind Flange
SIZE:
1/2" ~ 72" (15 mm ~ 1800 mm)
Class 150LBS ~ 2500LBS
PN 2.5 ~ PN 400
Materials:
Forged Carbon Steel
- ASTM A105, A105N / ASME SA105, SA105N
- ASTM A350 / SA350 GR LF2 (Class 1 & 2)
- ASTM A694 - F42, F46, F48, F50, F52, F56, F60, F65
- ASTM A516 - Gr.55, 60, 65, 70
Stainless & Alloy Steel
- ASTM A182/SA182 F5, F9, F11, F21, F51, F53,F55, F304/L, F316/L,
-1Cr5Mo,ASTM A234 GR.WP12,A335 GrP11,12CrMo,15CrMo
STANDARDS
ANSI B 16.5 , ANSI B 16.36 , ANSI B 16.47, ANSI B 16.48 ,
AWWA C 207, API , ISO7004, DIN 1092-1
GOST 12821-80 WNRF FLANGE
GOST 12820-80 Plate FLANGE
and customer made specification is available upon request
Common Flange Specifications:
NO. | FLANGE STANDARD | SIZE | PRESSURE RATING | TYPES |
1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | SO.WN,SW,TH,LJ,BL |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 | SO,WN,TH |
| 3 | LONG WELDING NECK FLANGES B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | LWN |
| 4 | ASME B16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 | WN,BL |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 | WN,BL |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D | SO,BL |
| 7 | API 590 FIG.8 FLANGE B16.48 | 1/2"-36" | LBS: 150 300 400 600 900 1500 2500 | FIG.8 |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 | SPACER AND BLANK |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 2.5 6 10 16 25 40 | CODE: 101 111 112 113 105 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 | SO.WN,SW,TH,LJ,BL |
| 11 | JIS B2220(KS B1503) FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K | SO.WN,SW,TH,LJ,BL |
| 12 | GOST 12820/1-80 | DN15-1200 | PN: 1 1.6 2.5 4 6.3 10 | SO,WN |
| 13 | AS 2129 FLANGE | DN15-1200 | TABLE: D E F H | SO,BL |
| 14 | NS FLANGE | DN15-800 | PN: 6 10 16 40 | SO,BL |
| 15 | VSM FLANGE | DN15-200 | PN: 6 10 16 | SO,WN,BL |
| 16 | DIN FLANGE | DN10-4000 | PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 | SO.WN,SW,TH,LJ,BL |
