Home > Products > YJ62 Shaded Pole Motor > High torque Low rpm Electric Motor Shaded Pole Oven fan Motor YJ62-25: sp motor, 220V fan motor, 50hz

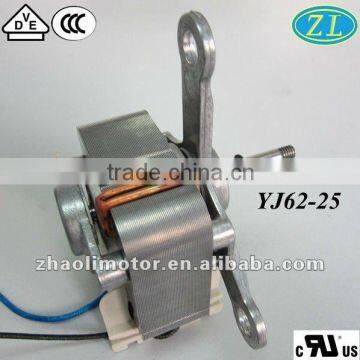

High torque Low rpm Electric Motor Shaded Pole Oven fan Motor YJ62-25: sp motor, 220V fan motor, 50hz
- Shenzhen
- T/T
You May Like
-
High quality high speed low noise ac motor: Piston compressor nebulizer motor 230V 50Hz CE/Ul/VDE certified Shaded pole motor
-
Shaded Pole Compressor Nebulizer Motor YJ62-30: high rpm sp motor, 220V, 50hz
-
220v 50hz Cross flow air blower Small powerful electric motors Electric fan motor Single phase shaded pole motor
-
Medical Nebulizer Motor YJ62-45: sp motor, 230V, 50hz, CL.H
-
230v 50hz Small motor Single phase 2800rpm motor YJ62-45:motor electric for air pump,compressor nebulizer, ventilator fan, oven,
-
shaded pole motor small ac pump motor 220-240V 50/60Hz air compressor nebulizer motor
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-25 | |
| Type | Asynchronous Motor | Frequency | 50HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-25
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ventilator, Nebulizer, Vacuum pump, Air pump, Oven
