Compressor Nebulizer motor Single-phase Shaded pole motor YJ62 type
- Shenzhen
- T/T
You May Like
-
50/60hz Electric motor High rpm electrical motor Air cooler motor YJ62-25: motor manufacturer for nebulizer,water pump,air pump
-
High torque Low rpm Electric Motor Shaded Pole Oven fan Motor YJ62-25: sp motor, 220V fan motor, 50hz
-
High quality high speed low noise ac motor: Piston compressor nebulizer motor 230V 50Hz CE/Ul/VDE certified Shaded pole motor
-
Shaded Pole Compressor Nebulizer Motor YJ62-30: high rpm sp motor, 220V, 50hz
-
220v 50hz Cross flow air blower Small powerful electric motors Electric fan motor Single phase shaded pole motor
-
Medical Nebulizer Motor YJ62-45: sp motor, 230V, 50hz, CL.H
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-25 | |
| Type | Asynchronous Motor | Frequency | 50/60 | |
| Output Power | 5-100W | Phase | Single-phase | |
| Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | AC Voltage | Other, 100-240V | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Characteristics: Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenanceSingle Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, produceing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Application:
Ovens, Microwave ovens, Air-conditioners, Refrigerators, Washing machines, Fan heaters, Ventilators, Humidifiers, Water-pumps, Air-fresheners
Product General Performance Parameters:
Voltage-----------------------100-240VAC
Frequency-------------------50/60HZ
Power-------------------------5-100W
Insulation Class-------------A/E/B/F/H
Noise--------------------------less than 43Db (A)
Life----------------------------5000-10000Hours
Core Thickness-------------12-40mm
Size----------------------------62.5*62.5mm
Shaft Diameter(mm)--------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
More Pictures:

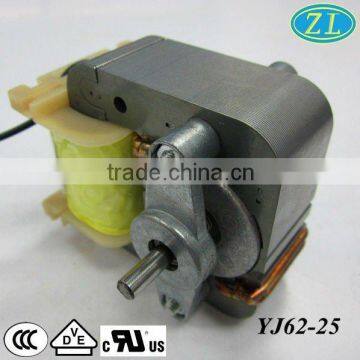

YJ62-25
