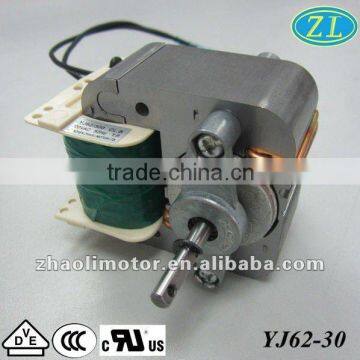

Air compressor nebulizer motor YJ62-30: 220v, 50hz, CL.B, motor electric motor manufacturer
- Shenzhen
- T/T
You May Like
-
high pressure long life 220-240V 50/60Hz Shaded pole motor for Air Compressor NEBULIZER MOTOR Motor
-
Air Compressor Nebulizer motor: single-phase SP AC motor with pump device
-
Compressor Nebulizer motor Single-phase Shaded pole motor YJ62 type
-
50/60hz Electric motor High rpm electrical motor Air cooler motor YJ62-25: motor manufacturer for nebulizer,water pump,air pump
-
High torque Low rpm Electric Motor Shaded Pole Oven fan Motor YJ62-25: sp motor, 220V fan motor, 50hz
-
High quality high speed low noise ac motor: Piston compressor nebulizer motor 230V 50Hz CE/Ul/VDE certified Shaded pole motor
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ62-30 | |
| Type | Asynchronous Motor | Frequency | 50HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-30
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ventilator, Nebulizer, Vacuum pump, Air pump, Oven
