Home > Products > YJ58 Shaded Pole Motor > 120v ac motor Electric motor specifications Electric motor low rpmYJ58-16:Exhaust fan motor Small electric motors
120v ac motor Electric motor specifications Electric motor low rpmYJ58-16:Exhaust fan motor Small electric motors
- Shenzhen
- T/T
You May Like
-
115v ac motor Low rpm motors Small electric fan motor Shaded pole motorYJ58-16:100-240VAC,50/60HZ,Insulation class A/E/B/F/H
-
Fan motor Small electric motors Shaded pole motorYJ58-12:100-240VAC,50/60hz,5000-10000hours,2000-2800rpm,VDE UL ROHS CE CCC
-
ac motor 230v 50Hz 2000rpm 16w shaded pole motor for humidifier, fan heater, ventilation
-
ac motor 230v 50Hz 16w shaded pole motor for humidifier, fan heater, ventilation
-
220v motor fan ul certified motor ac heater blower motors part electric fan
-
120v motor fan ul certified motor ac heater blower motors part electric fan
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ58-16 | |
| Type | Asynchronous Motor | Frequency | 50/60HZ | |
| Output Power | 25W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 115/120 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Life: 5000--10000 Hours
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35

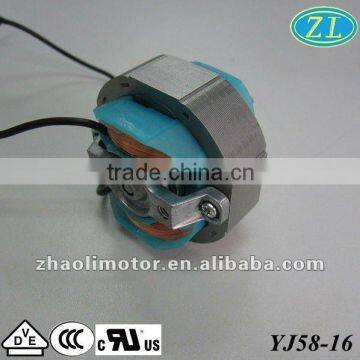

Series: YJ58-16
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Humidifier, Heater, Electric fan, Ventilator, Air freshener
