Home > Products > YJ48 Shaded Pole Motor > Cross flow fan Small motor Shade pole motorYJ48-16 for fireplace,ventilation,heater,cooler,air conditionerUL CUL VDE ROHS CCC CE

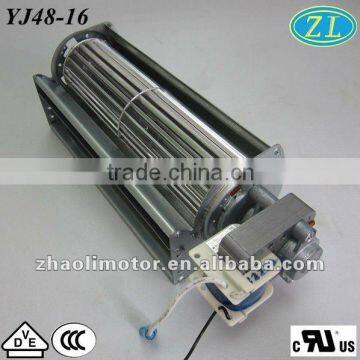

Cross flow fan Small motor Shade pole motorYJ48-16 for fireplace,ventilation,heater,cooler,air conditionerUL CUL VDE ROHS CCC CE
- Shenzhen
- T/T
You May Like
-
Cross flow fan Small motors Fan motorYJ48-16 for fireplace,ventilation,heater,cooler,air conditionerUL CUL VDE ROHS CCC CE
-
Cross flow blower Small motors Electric motor:100-240VAC,50/60HZ,10000hours,50-400m/h,8-165Pa UL CUL VDE ROHS CCC CE
-
Cross flow fan Electric shaded pole motor:100-240VAC,50/60HZ,10000hours,50-400m/h,8-165Pa UL CUL VDE ROHS CCC CE TUV
-
110v 60Hz shaded pole motor for humidifier, fan heater, air fryer
-
120v Class F low noice ac electric motor for oven YJ48-14 single phase shaded pole motor
-
110v 60Hz high rpm ac electric motor for air conditioner,humidifier,fan heater
Product Details
| Brand Name | Zhaoli Motor | Model Number | YJ48-16 | |
| Type | Asynchronous Motor | Frequency | 50HZ | |
| Output Power | 5-100W | Protect Feature | Other, Rust-proof | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Guangdong, China |
Product Description
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ48-16
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Humidifier, Heater, Oven, Air-conditioner, Slide projector
