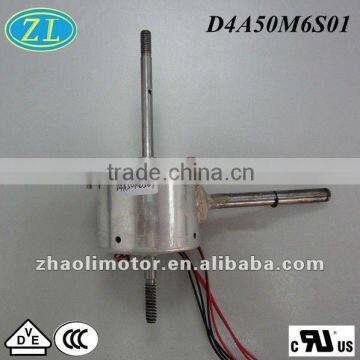

Brushless DC Motor: 50 bldc motor, 6.3V, 5W

FOB Price

Negotiable / Unit

1000 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Zhaoli Motor
Model Number	D4A50M6S01	Usage	Fan, Home Appliance, Other, Fan, Home Appliance, pump assembly
Certification	CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL	Type	Other, bldc motor
Construction	Permanent Magnet	Commutation	Brushless
Speed(RPM)	1880rpm	Output Power	5W
Voltage(V)	6.3V

1.Silent Design: running quietly
2.Positive and negative rotation

Brushless Direct Current Motor is a type of energy-saved motor. It owns following characteristics:

1) High efficiency:

In general, the efficiency of single-phase AC motor is under 30% , but the efficiency of single-phase DC motor is above 40%.

2) Easy control the speed:

Using PWM to control the speed and obtain linear deviation.

3) Soft start-up ( Lower start-up current):

Decreasing the start-up current to reduce the damage for matching system.

4) High reliability and long life:

Using high tech bearing system to ensure high reliability and long life.

5) Wide temperature range:

Operation temperature : -10~+80°C(5~95% RH),

Storage temperature: -40~+85°C(5~95% RH)

6) Speed feedback and alarm function:

System can easy read real time revolution and give alarm signal when rotor stops.

Series: 50

Application:

Application: Electric Fan, Wall Fan, Air Pump, Range Hood
