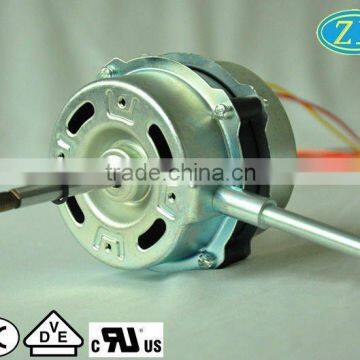

24v 24w 1250rpm brushless dc motor for electric fan stand fan

FOB Price

US$ 5 - 10 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Zhaoli Motor
Model Number	BLDC 55 Motor	Usage	Fan, Home Appliance, Other, Fan, Home Appliance, Humidifier, Devices with Air Pump Assembly
Certification	CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL,Reach testing standards	Type	Micro Motor
Construction	Permanent Magnet	Commutation	Brushless
Speed(RPM)	adjustable	Continuous Current(A)	adjustable
Output Power	adjustable	Voltage(V)	12VDC 24VDC
Efficiency	IE 4

1.High efficiency and saving energy
2.Easy control the speed
3.High reliability and long life
4.Running quietly

Brushless Direct Current Motor is a type of energy-saved motor. It owns following characteristics:

1) High efficiency:

In general, the efficiency of single-phase AC motor is under 30% , but the efficiency of single-phase DC motor is above 40%.

2) Easy control the speed:

Using PWM to control the speed and obtain linear deviation.

3) Soft start-up ( Lower start-up current):

Decreasing the start-up current to reduce the damage for matching system.

4) High reliability and long life:

Using high tech bearing system to ensure high reliability and long life.

5) Wide temperature range:

Operation temperature : -10~+80°C(5~95% RH),

Storage temperature: -40~+85°C(5~95% RH)

6) Speed feedback and alarm function:

System can easy read real time revolution and give alarm signal when rotor stops.

Series:

BLDC 55 Motor
