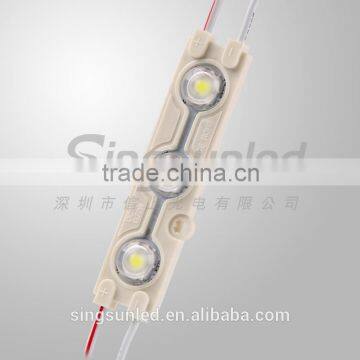

3 leds 5050 injection led module with lens
- 50 Piece / Pieces per Month
- Credit Card
You May Like
-
DC12V super brightness SMD 5050 led module IP65 waterproof 5050 led module
-
Factory sale IP68 waterproof injection 5050 led module
-
led module 12v 1watt 5050 injection led module 3 years warranty 5050 led module
-
0.48watt IP65 waterproof 2 leds 5050 smd led module DC12V 5050 led module lighting
-
IP68 waterproof 5050 injection led module with lens 12v dc led module 5050
-
High brightness waterproof 5050 led module advertising led module lighting 5050 smd led module
Product Details
| Model Number | STF-Z3X | Emitting Color | Other, warm white/nature white/cool white/R/G/B/Y | |
| Luminous Flux(lm) | 66lumen | Optical Attenuation(%) | 3% | |
| Power | Other, 0.72watt | Color Rendering Index(Ra) | 75 | |
| Color Temperature | 2700-12000k | Operating Temperature(℃) | -20, 60 | |
| Storage Temperature(℃) | -50, 60 | Place of Origin | Guangdong, China | |
| Brand Name | singsunled | Certification | CE |
Product Description
Features:
² 95% transmittance lens, Wider view angle 155°.
² Constant Current Driving method,40 pcs per Chain.
² Suitable for Super Thin channel letters and light boxes, No Spot, No Shadow.
² Injection molding process,IP Rate: IP 65, waterproof.
² Exposed Aluminum pcb design, perfect heat dissipation.
² Adopt Top 5050 SMD LED, Original Epistar chip from Taiwan.
² Long life span, 50,000 hrs.
Product Specifications:
Dimension | 40x15x6.8 mm | |||||||
LED No | 3 pcs 5050 SMD LED | |||||||
Voltage | Input 12VDC | |||||||
View angle | 155 degree | |||||||
Current | 60mA | 60mA | 60mA | 60mA | 60mA | |||
Watts | 0.72 | 0.72 | 0.72 | 0.72 | 0.72 | |||
Lumen | 66-72 | 12 | 37.5 | 16 | 19.5 | |||
Color | White | Blue | Green | Yellow | Red | |||
Drive method | Contant Current Drive | |||||||
Max connection | 40 pcs per a Chain | |||||||
Working temp | -20~+60℃ | |||||||
IP rate | IP65 | |||||||
Cover | Milky white ABS | |||||||
Warranty | 36 months | |||||||
Certificate | CE:BTRE0708181359 / RoHS: BTRS0708310889 | |||||||
Part No | STF-Z3W | STF-Z3B | STF-Z3G | STF-Z3Y | STF-Z3R | |||
Package:
Every 40 pcs per a string, every 3 string in an anti-static bag, 2400 pcs per a carton box. Carton size: 50*35*31.5 cm.
Net Weight: 8 g/pc; 960 g/bag; 20kg/carton.
Dimension Diagram(mm):
Connection Diagram:
Application:
1. Backlight of giant signage ,channel letter and lighting box.
2. Marine signal and task lighting.
3. Architectural outdoor lights.
CE & RoHS Certifications:
Exhibition Pictures:
Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)
2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)
2014 GZ& Shanghai International Lighting EXPO
