Bright led injection module 5050/5630 exclusive design
- Yantian
- T/T Credit Card
You May Like
-
3 chips injection molding led pcb module ip68 50pcs per line
-
3 chips injection IP68 waterproof 5050 led module light
-
DC12V IP68 waterproof 3 chips smd 5050 led module
-
Exclusive ultrasonic injection 5050 led module for signage and light box
-
Korean 3 chips smd 5050/5730 led module nc led injection module
-
CE RoHS 3 chips 5050 lg led module high brightness
Product Details
| Model Number | STF-K3-5050 | Chip Material | InGaN | |
| Emitting Color | Other, ww/nw/cw/red/green/blue | Luminous Intensity | 10000 | |
| Luminous Flux(lm) | 60-66lm | Optical Attenuation(%) | 3 | |
| Power | Other, 0.72 | Power Dissipation | 0.72 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | w/ww/cw/red/green/blue | |
| Operating Temperature(℃) | -20, 60 | Storage Temperature(℃) | -50, 60 | |
| Place of Origin | Guangdong, China | Brand Name | singsunled | |
| Certification | CE |
Product Description

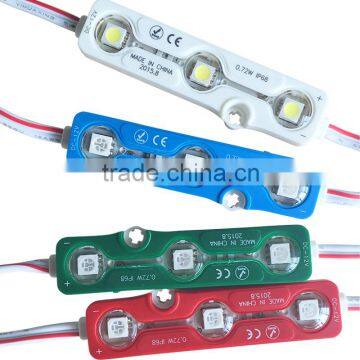

Bright led injection module 5050/5630 with exclusive design
Features:
1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, 20-22LM/led, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.
4. IP Rate: IP68, waterproof.
5. DC 12V low voltage input , reliable and safe.
6. Adopt series-parallel connection circuit, 20pcs/50pcs per string, each module could be singled out.
7. Viewing angle: 120° degree.
8. Five years warranty.
Specification:
LED Type | 5050 SMD LED |
LED BRAND | Epistar chip from Taiwan |
Viewing Angle | 120° |
Luminous Flux(lm) | 60-66 LM |
LED Qty | 3 pcs |
Life Span | 50,000 H |
Working Voltage | DC12V |
Consumption | 0.72 W |
Driving Method | CV |
Stand Length In Serial Connection | 20pcs/50pcs |
Maximum Length In Serial Connection | ≤50pcs/≤20pcs |
Shell | white ABS |
Dimension | 66*15*7.5 mm |
Available Color | W/WW/CW |
Certification | CE&ROHS |
Working Temperature | -20℃ —— +60℃ |
Store Temperature | -50℃ —— +60℃ |
IP Degree | IP68 |
Production overview:
Dimension Diagram:
Connection Diagram:
Package:
Application:
1. Backlight of giant signage ,channel letter and lighting box.
2. Marine signal and task lighting.
3. Architectural outdoor lights.
Certificates:
